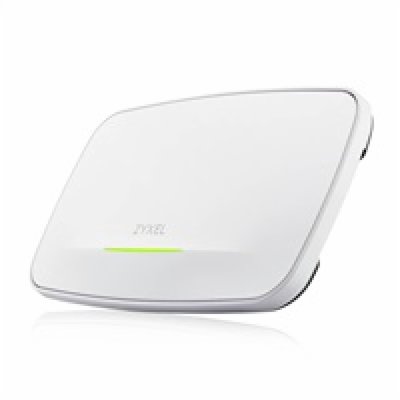

Zyxel WBE660S, Single Pack 802.11be AP, Smart Antenna, Standalone / NebulaFlex 1 year Nebula Pro pack license bundled EU
Zyxel WBE660S, Single Pack 802.11be AP, Smart Antenna, Standalone / NebulaFlex 1 year Nebula Pro pack license bundled EU
15119 Kč
12495 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: WBE660S-EU0101F
Kód produktu: 24456299
Výrobce: ZyXEL
Záruka: 5 měsíců
Popis produktu
Standard
IEEE802.11 be/ax/ac/n/g/b/a
MIMO
MU-MIMO
Wireless speed
2.4 GHz: 1376 Mbps
5 GHz: 8646 Mbps
6 GHz: 11530 Mbps
Frequency band
2.4 GHz:
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz
5 GHz:
USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
6 GHz:
USA (FCC): 5.925 to 6.425 GHz; 6.525 to 7.125 GHz
European (ETSI): 5.925 to 6.425 GHz
Bandwidth
20-, 40- ,80-, 160- , 240- and 320-MHz
Conducted typical transmit output power*1
US (2.4GHz/5GHz) or +/6GHz):
29/28/23dBm
EU (2.4GHz/5GHz) or +/6GHz):
19/25/22dBm
RF Design
Antenna type
Smart Antenna
Antenna gain
2.4 GHz:
3dBi, 4x4:4SS
5 GHz:
5dBi, 4x4:4SS
6 GHz:
5dBi, 4x4:4SS
Minimum receive sensitivity
Min. Rx sensitivity up to -104 dBm
WLAN Feature
Band steering
Yes
WDS/Mesh*2
Yes
Fast roaming
Pre-authentication, PMK caching and 802.11r/k/v
DCS
Yes
Load balancing
Yes
Advanced cellular coexistence
Yes
Security
Encryption
WEP
WPA
WPA2-PSK
WPA3
Authentication
IEEE 802.1X
RADIUS authentication
Access management
L2-isolation
MAC filtering
Rogue AP detection
Networking
IPv6
Yes
VLANs
Yes
WMM
Yes
U-APSD
Yes
Management
Operating mode
Nebula cloud managed
Controller-managed
Standalone
ZON Utility
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations:
IP configuration
IP renew
Device reboot
Device locating
Web GUI access
Firmware upgrade
Password configuration
Web UI/CLI
Yes
SNMP
Yes
Physical Specifications
Item
Dimensions (WxDxH)(mm/in.)
310 x 178 x 56 / 12.205 x 7.01 x 2.205
Weight (g/lb.)
1412/3.11
Packing
Dimensions (WxDxH)(mm/in.)
377 x 231 x 93 / 14.84 x 9.09 x 3.66
Weight (g/lb.)
2040/4.497
Included accessories
Mount plate
Mounting screws
MTBF (hr)
242,749
Physical Interfaces
Ethernet port
1 x 1/2.5/5/10Gbps LAN
1 x 1Gbps LAN
Power
PoE (802.3)bt: power draw 41 W
DC input : USB PD 15 VDC 3A (Type C)
PoE modes
IEEE 802.3af: Not supported
IEEE 802.3at: 2.4GHz 2T4R; 5GHz 2T4R; 6GHz 2T4R*3
IEEE 802.3bt: Unrestricted
Environmental Specifications
Operating
Temperature
0°C to 45°C/32°F to 113°F
Humidity
10% to 90% (non-condensing)
Storage
Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90% (non-condensing)
Certifications
Radio
FCC Part 15C
FCC Part 15E
ETSI EN 300 328
EN 301 893, LP0002
EMC
FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55022
EN55024
EN61000-3-2/-3
EN60601-1-2
BSMI CNS13438
Safety
Safety EN 60950-1
IEC 60950-1
BSMI CNS14336-1
All specifications are subject to change without notice.
*1. Maximum transmit power is limited by local regulatory settings.
*2 WDS, ZyMesh, Smart Mesh and Industry’s Open Mesh, Easy Mesh are different mesh systems that do not work with one another.
*3 WBE660S with 2T4R configuration can run with All Zyxel PoE+ switch models without any problem. If WBE660S works with other POE+ switch brands, please make sure TX Power is under 15dBm and the uplink speed is lower than 2.5GbE.
Popis produktu
WirelessStandard
IEEE802.11 be/ax/ac/n/g/b/a
MIMO
MU-MIMO
Wireless speed
2.4 GHz: 1376 Mbps
5 GHz: 8646 Mbps
6 GHz: 11530 Mbps
Frequency band
2.4 GHz:
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz
5 GHz:
USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
6 GHz:
USA (FCC): 5.925 to 6.425 GHz; 6.525 to 7.125 GHz
European (ETSI): 5.925 to 6.425 GHz
Bandwidth
20-, 40- ,80-, 160- , 240- and 320-MHz
Conducted typical transmit output power*1
US (2.4GHz/5GHz) or +/6GHz):
29/28/23dBm
EU (2.4GHz/5GHz) or +/6GHz):
19/25/22dBm
RF Design
Antenna type
Smart Antenna
Antenna gain
2.4 GHz:
3dBi, 4x4:4SS
5 GHz:
5dBi, 4x4:4SS
6 GHz:
5dBi, 4x4:4SS
Minimum receive sensitivity
Min. Rx sensitivity up to -104 dBm
WLAN Feature
Band steering
Yes
WDS/Mesh*2
Yes
Fast roaming
Pre-authentication, PMK caching and 802.11r/k/v
DCS
Yes
Load balancing
Yes
Advanced cellular coexistence
Yes
Security
Encryption
WEP
WPA
WPA2-PSK
WPA3
Authentication
IEEE 802.1X
RADIUS authentication
Access management
L2-isolation
MAC filtering
Rogue AP detection
Networking
IPv6
Yes
VLANs
Yes
WMM
Yes
U-APSD
Yes
Management
Operating mode
Nebula cloud managed
Controller-managed
Standalone
ZON Utility
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations:
IP configuration
IP renew
Device reboot
Device locating
Web GUI access
Firmware upgrade
Password configuration
Web UI/CLI
Yes
SNMP
Yes
Physical Specifications
Item
Dimensions (WxDxH)(mm/in.)
310 x 178 x 56 / 12.205 x 7.01 x 2.205
Weight (g/lb.)
1412/3.11
Packing
Dimensions (WxDxH)(mm/in.)
377 x 231 x 93 / 14.84 x 9.09 x 3.66
Weight (g/lb.)
2040/4.497
Included accessories
Mount plate
Mounting screws
MTBF (hr)
242,749
Physical Interfaces
Ethernet port
1 x 1/2.5/5/10Gbps LAN
1 x 1Gbps LAN
Power
PoE (802.3)bt: power draw 41 W
DC input : USB PD 15 VDC 3A (Type C)
PoE modes
IEEE 802.3af: Not supported
IEEE 802.3at: 2.4GHz 2T4R; 5GHz 2T4R; 6GHz 2T4R*3
IEEE 802.3bt: Unrestricted
Environmental Specifications
Operating
Temperature
0°C to 45°C/32°F to 113°F
Humidity
10% to 90% (non-condensing)
Storage
Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90% (non-condensing)
Certifications
Radio
FCC Part 15C
FCC Part 15E
ETSI EN 300 328
EN 301 893, LP0002
EMC
FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55022
EN55024
EN61000-3-2/-3
EN60601-1-2
BSMI CNS13438
Safety
Safety EN 60950-1
IEC 60950-1
BSMI CNS14336-1
All specifications are subject to change without notice.
*1. Maximum transmit power is limited by local regulatory settings.
*2 WDS, ZyMesh, Smart Mesh and Industry’s Open Mesh, Easy Mesh are different mesh systems that do not work with one another.
*3 WBE660S with 2T4R configuration can run with All Zyxel PoE+ switch models without any problem. If WBE660S works with other POE+ switch brands, please make sure TX Power is under 15dBm and the uplink speed is lower than 2.5GbE.
