Ubiquiti Přístupový systém pro výtahy (startovní sada) - 1x rozbočovač, 2x čtečka, 2x PoE/Wire extender, 10x NFCkarta
Ubiquiti Přístupový systém pro výtahy (startovní sada) - 1x rozbočovač, 2x čtečka, 2x PoE/Wire extender, 10x NFCkarta
22357 Kč
18477 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: UA-SK-Elevator
Kód produktu: 24482231
Výrobce: Ubiquiti
Váha: 1,636 kg
Záruka: 24 měsíců
Popis produktu
(1) Elevator Hub
(1) G2 Reader
(2) 2-wire PoE extenders
(10) Access Cards

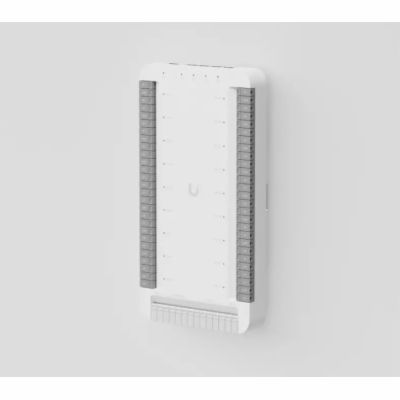

UA-Hub-Elevator
Mechanical
Dimensions 129.3 x 244.7 x 33.6 mm (5.1 x 9.6 x 1.3")
Weight 537 g (1.2 lb)
Enclosure material Polycarbonate
Mounting material Polycarbonate
Hardware
Networking interface (4) 10/100/1000 Base-T
Management interface (1) 10/100/1000 Base-T
Power method PoE++
Max. power consumption 7W (Without PoE output)
PoE input (1) PoE++, 50V DC, 1.2A
PoE output PoE passthrough, (4) PoE, 50V DC, total 42W
ESD/EMP protection Air: ±8kV, contact: ±4kV
Digital input (5) Car position
(6) Car status; Up/down/stop/full/door open/door close
(1) Emergency
Outputs (18) Relays
Rating 30V DC/2A
LEDs System: white/blue/red
Output relays: white
Buttons (1) Factory-reset
Terminal blocks
Ambient operating temperature -10 to 40° C (14 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
UACC-Extender-2Wire-Tx/Rx
Mechanical
Dimensions 40 x 105 x 25 mm (1.6 x 4.1 x 1")
Weight PoE in: 77 g (2.7 oz)
PoE out: 79 g (2.8 oz)
Enclosure material Polycarbonate
Mounting material Polycarbonate
Hardware
Networking interface (1) 10/100 MbE
(1) Homeplug AV
Management interface (1) 10/100 MbE
Power method PoE++
Max. power consumption 3W (Without PoE output)
PoE input (1) PoE++, 50V DC, Max. 1.2A
PoE output (1) PoE+, 48V DC, 0.72A
ESD/EMP protection Air: ±8kV, contact: ±4kV
LED White
Ambient operating temperature -10 to 40° C (14 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
UA-G2
Mechanical
Dimensions 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
Weight 82 g (2.9 oz)
Enclosure material Polycarbonate, glass
Mounting In wall, gang box
Weatherproofing IP55
Hardware
Networking interface (1) 10/100 MbE RJ45 port
Connectivity BLE 4.1
Power method PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Supported voltage range 48V DC
Max. power consumption 5W
ESD/EMP protection Air: ±15kV, contact: ±8kV
Sensors Proximity sensor
Speaker (1) 8 ohm, 0.7W
LEDs R/G/B/W
Button (1) Factory-reset
NFC frequency 13.56 MHz
NFC read range < 30 mm
NFC standards ISO 14443A, 14443B, 15693
NFC technology NFC Tag 1,2,3,4,5
MIFARE Classic
MIFAREPlus
MIFARE Ultralight
MIFARE DESFire
Operating environment Outdoor use
Ambient operating temperature -30 to 45° C (-22 to 113° F)
Ambient operating humidity 5 to 90% noncondensing
Software information The software version of a product can be checked at https://unifi.ui.com
UL 294 level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
UL 294 statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirements Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2) for patch cords; 24 AWG (0.21 mm2) for horizontal or riser cable.
CAN/ULC-60839-11-1 Grade Grade assignment: I
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level UA-G2/UA-G2-Black, V02
LED
System Steady blue: Adopted/device is ready
Steady white: Pending adoption
Blinking white/blue: Upgrading firmware
Strobing red: Emergency lockdown
UA-Card
Mechanical
Dimensions 85.6 x 54 x 0.8 mm (3.4 x 2.1 x 0.03")
Weight 5 g (0.18 oz)
Format ISO 7810 ID-1
NFC frequency 13.56 MHz
NFC technology ISO/IEC 14443 Type A
MIFARE DESFire
UniFi Access Proprietary Security Protocol
Popis produktu
Připojuje se ke čtečkám ve výtahu pomocí PoE a autorizuje výběr podlaží uživatelem. Podpora až 18 pater a digitálních vstupů pro stav vozu a nouzové situace.(1) Elevator Hub
(1) G2 Reader
(2) 2-wire PoE extenders
(10) Access Cards
UA-Hub-Elevator
Mechanical
Dimensions 129.3 x 244.7 x 33.6 mm (5.1 x 9.6 x 1.3")
Weight 537 g (1.2 lb)
Enclosure material Polycarbonate
Mounting material Polycarbonate
Hardware
Networking interface (4) 10/100/1000 Base-T
Management interface (1) 10/100/1000 Base-T
Power method PoE++
Max. power consumption 7W (Without PoE output)
PoE input (1) PoE++, 50V DC, 1.2A
PoE output PoE passthrough, (4) PoE, 50V DC, total 42W
ESD/EMP protection Air: ±8kV, contact: ±4kV
Digital input (5) Car position
(6) Car status; Up/down/stop/full/door open/door close
(1) Emergency
Outputs (18) Relays
Rating 30V DC/2A
LEDs System: white/blue/red
Output relays: white
Buttons (1) Factory-reset
Terminal blocks
Ambient operating temperature -10 to 40° C (14 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
UACC-Extender-2Wire-Tx/Rx
Mechanical
Dimensions 40 x 105 x 25 mm (1.6 x 4.1 x 1")
Weight PoE in: 77 g (2.7 oz)
PoE out: 79 g (2.8 oz)
Enclosure material Polycarbonate
Mounting material Polycarbonate
Hardware
Networking interface (1) 10/100 MbE
(1) Homeplug AV
Management interface (1) 10/100 MbE
Power method PoE++
Max. power consumption 3W (Without PoE output)
PoE input (1) PoE++, 50V DC, Max. 1.2A
PoE output (1) PoE+, 48V DC, 0.72A
ESD/EMP protection Air: ±8kV, contact: ±4kV
LED White
Ambient operating temperature -10 to 40° C (14 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
UA-G2
Mechanical
Dimensions 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
Weight 82 g (2.9 oz)
Enclosure material Polycarbonate, glass
Mounting In wall, gang box
Weatherproofing IP55
Hardware
Networking interface (1) 10/100 MbE RJ45 port
Connectivity BLE 4.1
Power method PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Supported voltage range 48V DC
Max. power consumption 5W
ESD/EMP protection Air: ±15kV, contact: ±8kV
Sensors Proximity sensor
Speaker (1) 8 ohm, 0.7W
LEDs R/G/B/W
Button (1) Factory-reset
NFC frequency 13.56 MHz
NFC read range < 30 mm
NFC standards ISO 14443A, 14443B, 15693
NFC technology NFC Tag 1,2,3,4,5
MIFARE Classic
MIFAREPlus
MIFARE Ultralight
MIFARE DESFire
Operating environment Outdoor use
Ambient operating temperature -30 to 45° C (-22 to 113° F)
Ambient operating humidity 5 to 90% noncondensing
Software information The software version of a product can be checked at https://unifi.ui.com
UL 294 level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
UL 294 statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirements Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2) for patch cords; 24 AWG (0.21 mm2) for horizontal or riser cable.
CAN/ULC-60839-11-1 Grade Grade assignment: I
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level UA-G2/UA-G2-Black, V02
LED
System Steady blue: Adopted/device is ready
Steady white: Pending adoption
Blinking white/blue: Upgrading firmware
Strobing red: Emergency lockdown
UA-Card
Mechanical
Dimensions 85.6 x 54 x 0.8 mm (3.4 x 2.1 x 0.03")
Weight 5 g (0.18 oz)
Format ISO 7810 ID-1
NFC frequency 13.56 MHz
NFC technology ISO/IEC 14443 Type A
MIFARE DESFire
UniFi Access Proprietary Security Protocol
