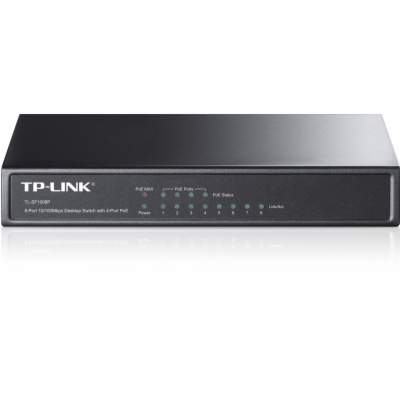

TP-Link switch TL-SF1008P (8x100Mb/s, 4xPoE+, 66W, fanless)
TP-Link switch TL-SF1008P (8x100Mb/s, 4xPoE+, 66W, fanless)
1238 Kč
1023 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: TL-SF1008P
Kód produktu: 1748172
Výrobce: TP-Link
Váha: 1 kg
Záruka: 60 měsíců
Popis produktu
8-Port 10/100Mbps Desktop Switch with 4-Port PoE
TL-SF1008P
With four PoE ports, transfers data and power on one single cable
Working with IEEE 802.3af compliant PDs, expands home and office network
Requires no configuration and installation
•Supports PoE power up to 15.4W for each PoE port
•Supports PoE power up to 57W for all PoE ports
•Supports PoE IEEE 802.3af compliant PDs
•Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
•2K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging
•LED indicators for monitoring power, link, activity
•External power adapter supply
HARDWARE FEATURES
Interface
8 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity
Fanless
Power Consumption
Maximum (PoE on): 60.2W (220V/50Hz)
Maximum (PoE off): 3.2W (220V/50Hz)
External Power Supply
External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45)
Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 57W
Backbound Bandwidth
1.6Gbps
Mac Address Table
2K
Dimensions ( W x D x H )
6.7*3.9*1.1 in. (171*98*27 mm)
SOFTWARE FEATURES
Transmission Method
Store-And-Forward
Advanced Functions
Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
OTHERS
Certification
FCC, CE, RoHS
Package Contents
TL-SF1008P, Power Adapter, User Guide
Consumption
2.3 watts (max. no PD connected)
59.3 watts (max. with 57w PD connected)
Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Popis produktu
8-Port 10/100Mbps Desktop Switch with 4-Port PoE
TL-SF1008P
With four PoE ports, transfers data and power on one single cable
Working with IEEE 802.3af compliant PDs, expands home and office network
Requires no configuration and installation
•Supports PoE power up to 15.4W for each PoE port
•Supports PoE power up to 57W for all PoE ports
•Supports PoE IEEE 802.3af compliant PDs
•Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
•2K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging
•LED indicators for monitoring power, link, activity
•External power adapter supply
HARDWARE FEATURES
Interface
8 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity
Fanless
Power Consumption
Maximum (PoE on): 60.2W (220V/50Hz)
Maximum (PoE off): 3.2W (220V/50Hz)
External Power Supply
External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45)
Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 57W
Backbound Bandwidth
1.6Gbps
Mac Address Table
2K
Dimensions ( W x D x H )
6.7*3.9*1.1 in. (171*98*27 mm)
SOFTWARE FEATURES
Transmission Method
Store-And-Forward
Advanced Functions
Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
OTHERS
Certification
FCC, CE, RoHS
Package Contents
TL-SF1008P, Power Adapter, User Guide
Consumption
2.3 watts (max. no PD connected)
59.3 watts (max. with 57w PD connected)
Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
