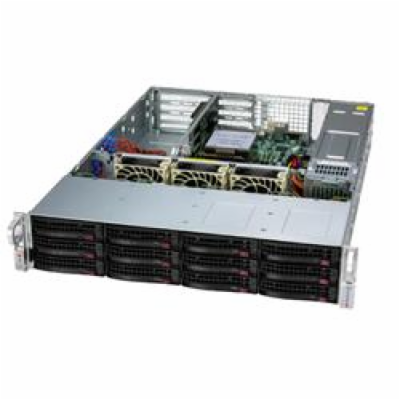

SUPERMICRO WIO A+ Ser 2U UP WIO with 12 hot-swap 3.5" NVMe/SAS/SATA (6 NVMe hybrid) bays and 2 PCIe 5.0 x16 FHFL slots +
SUPERMICRO WIO A+ Ser 2U UP WIO with 12 hot-swap 3.5" NVMe/SAS/SATA (6 NVMe hybrid) bays and 2 PCIe 5.0 x16 FHFL slots +
62239 Kč
51437 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: AS-2015SV-WTNRT
Kód produktu: 24867165
Výrobce: SUPERMICRO
Záruka: 36 měsíců
Popis produktu
Product SKUs
A+ Server AS -2015SV-WTNRT
Motherboard
Super H13SVW-NT
Processor
CPU
Single processor(s)
AMD EPYC™ 8004 Series Processor
Core Count
Up to 64C/128T
Note
Supports up to 225W TDP CPUs (Air Cooled)
GPU
Max GPU Count
Up to 1 double-width or 2 single-width GPU(s)
Supported GPU
NVIDIA PCIe: T400, RTX 4000 Ada Generation
View GPU Options
System Memory
Memory
Slot Count: 6 DIMM slots
Max Memory (1DPC): Up to 576GB 4800MT/s ECC DDR5 RDIMM
View Memory Options
On-Board Devices
Chipset
System on Chip
Network Connectivity
2 RJ45 10GBASE-T with Broadcom® BCM57416
View AOC Options
NVMe
View NVMe Options
Input / Output
LAN
1 RJ45 1 GbE Dedicated IPMI LAN port(s)
2 RJ45 10 GBASE-T LAN port(s)
USB
4 port(s) (rear)
Video
1 VGA port(s)
Serial
1 COM port(s) (Rear)
TPM
1 TPM Onboard/port 80
System BIOS
BIOS Type
AMI 32MB SPI Flash EEPROM
BIOS Features
ACPI 6.4
SMBIOS 3.5 or later
UEFI 2.8
Plug and Play (PnP)
USB Keyboard support
Management
Software
SuperCloud Composer
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
SuperDoctor® 5
Super Diagnostics Offline
TAS: Supermicro Thin-Agent Service (TAS)
SAA(new!)
Power configurations
1U redundant 800W Titanium AC Power Supply
Security
Hardware
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
PC Health Monitoring
FAN
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Chassis
Form Factor
2U Rackmount
Model
CSE-826BTS-R000WNBP4
Dimensions and Weight
Height
3.5" (89 mm)
Width
17.2" (437 mm)
Depth
25.6" (650 mm)
Package
11.5" (H) x 26.5" (W) x 34" (D)
Weight
Gross Weight: 58 lbs (26.3 kg)
Net Weight: 34 lbs (15.4 kg)
Available Color
Black
Front Panel
LED
Device Activity
LAN 1 Activity
LAN 2 Activity
Power Failure LED
Power status
System information
Buttons
Power On/Off
System Reset
Expansion Slots
PCI-Express (PCIe) Configuration
Default
2 PCIe 5.0 x16 FHFL slot(s)
2 PCIe 5.0 x8 LP slot(s)
View AOC Options
M.2
2 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key)
Drive Bays / Storage
Drive Bays Configuration
Default: Total 12 bay(s)
12 front hot-swap 3.5" SATA drive bay(s)
Option A: Total 12 bay(s)
6 front hot-swap 3.5"/2.5" PCIe 5.0 NVMe*/SATA drive bay(s)
6 front hot-swap 3.5"/2.5" SATA drive bay(s)
Option B: Total 12 bay(s)
12 front hot-swap 2.5" SAS* drive bay(s)
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
View Drive Options
M.2
2 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key 2280/22110)
View M.2 Options
System Cooling
Fans
3 Heavy duty PWM 80x80x38mm Fan(s)
Power Supply
2x 800W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)
76 x 40 x 336 mm
AC Input
800W: 100-240Vac / 50-60Hz
800W: 200-240Vdc / 50-60Hz
+12V
Max: 66A / Min: 0A (100Vac-240Vac)
Max: 66A / Min: 0A (200Vdc-240Vdc)
5V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
