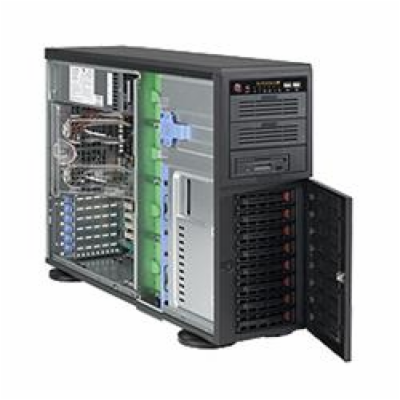

Supermicro CSE-743TQ-903B-SQ SUPERMICRO Tower/4U 8x 3,5" HS SAS/SATA, 2x 5,25", 1x 5,25" pro 3,5", 903W (80+gold) (Super Quiet - 28dB)
Supermicro CSE-743TQ-903B-SQ SUPERMICRO Tower/4U 8x 3,5" HS SAS/SATA, 2x 5,25", 1x 5,25" pro 3,5", 903W (80+gold) (Super Quiet - 28dB)
17426 Kč
14402 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: CSE-743TQ-903B-SQ
Kód produktu: 21848598
Výrobce: SUPERMICRO
Záruka: 36 měsíců
Popis produktu
8x 3.5"/2.5" SAS/SATA Backplane for Hot-Swappable Drives
Whisper-Quiet (<28dB)
Front HDD Door Lock & Side Panel Intrusion Switch
Front I/O Ports: 2x USB 3.0
2x 8cm PWM Fans & 1x 9cm Rear PWM Fan
4U / Full Tower Chassis Supports max. Motherboard, Sizes: E-ATX 12" x 13"/ATX/Micro ATX
903W 80-Plus Gold Certified High-Efficiency Power Supply
3x 5.25" External HDD Drive Bays & 8x 3.5"/2.5" Hot-Swappable HDD Drives
Specifications
Product SKUs
CSE-743TQ-903B-SQ
SuperChassis 743TQ-903B-SQ
Form Factor
4U chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX and ATX
Processor Support
Dual and Single Intel® and AMD processors
Dimensions
Height
17.8" (452 mm)
Width
7" (178 mm)
Depth
25.5" (647 mm)
Net Weight
53 lbs (24.04 kg)
Gross Weight
56 lbs (25.4 kg)
Packaging (W x H x L)
24.6" (625 mm) x 14" (356 mm) x 31.3" (795 mm)
Available Color
Black
Expansion Slots
7 full-height & full-length expansion slot(s)
Drive Bays
8 x 3.5"/2.5" hot-swap SAS drive bay with SES3
Backplane
743 SAS BACKPLANE W/AMI MG9072
Peripheral Drives
3 x standard 5.25" drive bay
90 degree rotatable drive cage
Front Panel
Buttons
Power On/Off button
System Reset Button
LEDs
2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Unit Identification (UID) LED
Ports
2x USB 3.0 Port(s)
Systems Cooling
Fans
2 x 2800 RPM fan(s)
1 x 2700 RPM fan(s)
System Monitoring
Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
Power Supply
PS2/ATX 900W multiple outputs power supply, Gold level, 12cm fan
Power Efficiency
90%
Total Output Power and Input
900W with Input 100 - 240Vac
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
190 x 150 x 86 mm
Output Type
24pin ATX
-12V
Max: 0.5A / Min: 0A
+12V
Max: 25A / Min: 0.1A (100Vac - 240Vac)
Max: 25A / Min: 0.1A (100Vac - 240Vac)
Max: 25A / Min: 0.1A (100Vac - 120Vac)
Max: 25A / Min: 0.1A (100Vac - 240Vac)
+5V
Max: 25A / Min: 0A
+3.3V
Max: 25A / Min: 0A
+5Vsb
Max: 4A / Min: 0.02A
+12Vsb
Max: NAA
Certification
Gold Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL
Components
Standard Parts List
Part Number
Qty
Description
HD Backplane
CSE-SAS-743TQ
1
743 SAS BACKPLANE W/AMI MG9072
Cable(S)
CBL-0044L
4
57.5CM SATA FLAT S-S PBF
Cable(S)
CBL-0084
1
16 PIN FRONT CTRL SPLIT CONVECTOR 6"
Cable(S)
CBL-0087
1
CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
Cable(S)
CBL-0157L
1
8PIN TO 8PIN RIBBON CABLE FOR SGPIO, PB FREE
Cable(S)
CBL-0160L
1
US POWER CORD 16AWG, PB FREE
Cable(S)
CBL-0216L
4
4 TO 4 PIN FAN POWER CABLE, 210MM
Cable(S)
CBL-0471L
1
USB3.0 Internal Cable-80cm (19pin Female to 19pin Female)
Fan(s)
FAN-0103L4
1
92x25 4Pin PWM Fan assembly for SC743 Super Quiet rear fan
