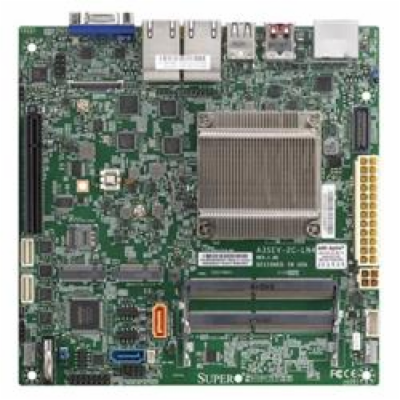

SUPERMICRO mini-ITX MB Atom x6425E (4-core), 2x DDR4 ECC SO-DIMM, 8xSATA, 1x PCI-E 3.0 x4, 4x 1GbE LAN, bulk
SUPERMICRO mini-ITX MB Atom x6425E (4-core), 2x DDR4 ECC SO-DIMM, 8xSATA, 1x PCI-E 3.0 x4, 4x 1GbE LAN, bulk
9247 Kč
7642 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: MBD-MBD-A3SEV-4C-LN4-B
Kód produktu: 24005509
Výrobce: SUPERMICRO
Záruka: 36 měsíců
Popis produktu
Key Features
Intel® Atom® Processor x6425E
Single Socket FCBGA-1493 supported, CPU TDP supports Up to 12W TDP
Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-3200MHz, in 2 DIMM slots
1 PCIe 3.0 X2 (in x8 slot)
1 M.2 B-Key SATA/PCIe 3.0 x2/USB 3.0, 3042/2280
1 M.2 E-Key PCIe 3.0 x1/USB 2.0, 2230
Single LAN with Intel® Ethernet Controller I210IT
ONLY i210 support PXE
3 LAN with 1GbE with Marvell® 88E1512
System on Chip
1 DP (DisplayPort) port, 1 HDMI port, 1 VGA port, 1 eDP (Embedded DisplayPort) port, Supports 3 independent displays
Optimized Servers
SYS-E302-12E
Product SKUs
MBD-A3SEV-4C-LN4
Physical Stats
Form Factor
Mini-ITX
Dimension
6.7" x 6.7" (17.02cm x 17.02cm)
Processor
CPU
Intel® Atom® Processor x6425E
Single Socket FCBGA-1493 supported, CPU TDP supports Up to 12W TDP
Core
Up to 4 cores, 4 threads
System Memory
Memory Capacity
2 DIMM slots
Up to 32GB Unbuffered non-ECC SODIMM, DDR4-3200MHz
Memory Type
3200 MT/s non-ECC DDR4 SODIMM Unbuffered 3200MHzMT/s 260pin up to 32GB
DIMM Sizes
8GB, 16GB
Memory Voltage
1.2V
On-Board Devices
Chipset
System on Chip
Audio
ALC 888S HD Audio
Graphics
1 Intel® HD Graphics port(s)
Network Controllers
Single LAN with Intel® Ethernet Controller I210IT, ONLY i210 support PXE
3 LAN with 1GbE with Marvell® 88E1512
Input / Output
SATA
2 SATA3 (6Gbps) port(s)
LAN
4 RJ45 Gigabit Ethernet LAN ports
USB
2 USB 3.1 Gen2 port(s) (2 rear type A)
6 USB 2.0 port(s) (4 via header; 2 rear)
Video Output
1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 eDP (Embedded DisplayPort) port(s)
Serial Port
4 COM Port(s) (4 header)
TPM
1 TPM Header & Chip both
Expansion Slots
PCIe
1 PCIe 3.0 X2 (in x8 slot)
M.2
M.2 Interface: 1 SATA/PCIe 3.0 x2/USB 3.0; 1 PCIe 3.0 x1/USB 2.0
Form Factor: 3042/2280, 2230
Key: B-Key, E-Key
System BIOS
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.2 or later
UEFI 2.7
Plug and Play (PnP)
SMBIOS 3.3 or later
DMI 2.3
USB Keyboard support
RTC (Real Time Clock) Wakeup
Management
Software
SuperDoctor® 5, Watchdog
Power Configurations
ACPI Power Management, +12V DC Power Input
PC Health Monitoring
Voltage
VBAT, System temperature, System level control, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
LED
Standby alert LED
CPU / System Overheat LED
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
FAN
Thermal control tachometer fan connectors, System level control, PWM fan speed control, Low noise fan speed control, Fan speed control, Dual Cooling Zone, Overheat LED indication
Other Features
WOL, System level control, RoHS, CPU thermal trip support for processor protection, Chassis intrusion header, ATX Power connector, ACPI power management, 12V DC or ATX Power Source, 4-pin 12v DC power connector
Operating Environment
Operating Temperature Range
-30°C - 70°C (-22°F - 158°F)
Non-Operating Temperature Range
-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
10% - 95% (non-condensing)
Standard Parts (Bulk Package)
Part Number
Qty
Description
I/O Cables
CBL-0044L •
1
57.5CM SATA FLAT S-S PBF
I/O Shield
MCP-260-00058-0N
1
Standard I/O Shield for A2SAV with EMI Gasket
Standard Parts (Retail Package)
Part Number
Qty
Description
I/O Cables
CBL-0044L •
2
57.5CM SATA FLAT S-S PBF
I/O Shield
MCP-260-00058-0N
1
A3SEV standard 2U I/O Shield
QRG
MNL-2355-QRG
1
Motherboard Quick Reference Guide
Optional Parts
