SUPERMICRO Mid-Tower 4x 3,5" fixed HDD, 2x 5,25", 1x external 3,5",(Audio,2xUSB 3.0,2xUSB 2.0,Audio), 900W (80PLUS Gold)
SUPERMICRO Mid-Tower 4x 3,5" fixed HDD, 2x 5,25", 1x external 3,5",(Audio,2xUSB 3.0,2xUSB 2.0,Audio), 900W (80PLUS Gold)
10004 Kč
8268 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: CSE-732D4-903B
Kód produktu: 9680702
Výrobce: SUPERMICRO
Záruka: 36 měsíců
Popis produktu
Product SKUs
CSE-732D4-903B SuperChassis 732D4-903B
Form Factor
Mid-tower chassis support for max. motherboard size - 12" x 13" E-ATX, 12" x 10" ATX and 9.6" x 9.6" Micro-ATX
Processor Support
Dual, single Intel® / AMD processors
Dimensions
Height 16.7" (424 mm)
Width 7.6" (193 mm)
Depth 20.68" (525 mm)
Net Weight 28 lbs (12.7 kg)
Gross Weight 30 lbs (13.61 kg)
Packaging (W x H x L) 21.38" (543 mm) x 11.97" (304 mm) x 25.28" (642 mm)
Available Color Black
Expansion Slots
7 full-height & full-length expansion slot(s)
Drive Bays
4 x 3.5" fixed drive bay
Optional 4 x 2.5" fixed drive bay
Peripheral Drives
2 x standard 5.25" drive bay
1 x 3.5" internal fixed drive bay

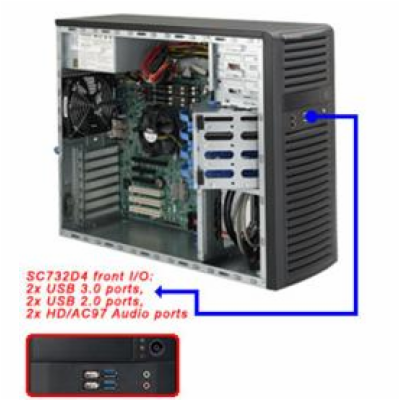

Front Panel
Buttons Power On/Off button
LEDs 1 Network Activity LEDs
HDD activity LED
Power Status LED
System Overheat LED
Ports 2x USB 3.0 Port(s)
2x USB 2.0 Port(s)
2x HD/AC97 Audio port(s)
Systems Cooling
Fans 1 x 12cm rear exhaust fan(s)
Optional 1 x 12cm (front) cooling fan
Operating Environment (System)
Operating Temperature Range 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Power Supply
PS2/ATX 900W multiple outputs power supply, Gold level, 12cm fan
Power Efficiency 90%
Total Output Power and Input 900W with Input 100 - 240Vac
AC Input Frequency 50-60Hz
Dimensions (L x W x H) 190 x 150 x 86 mm
Output Type 24pin ATX
-12V Max: 0.5A / Min: 0A
+12V Max: 25A / Min: 0.1A (100Vac - 240Vac)
Max: 25A / Min: 0.1A (100Vac - 240Vac)
Max: 25A / Min: 0.1A (100Vac - 120Vac)
Max: 25A / Min: 0.1A (100Vac - 240Vac)
+5V Max: 25A / Min: 0A
+3.3V Max: 25A / Min: 0A
+5Vsb Max: 4A / Min: 0.02A
+12Vsb Max: NAA
Certification Gold Certified Gold Certified
Regulatory (Power Supply)
Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL
Components ?
Standard Parts List
Part Number Qty Description
Cable(S) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Cable(S) CBL-0084L 1 16PIN FRONT CTRL SPLIT CONVECTOR 6",PB FREE
Cable(S) CBL-0453L 1 USB3.0 Internal Cable-60cm(19pin Female to 19pin Female)
Cable(S) CBL-0455L 1 HD/AC97 Audio Cable-60cm
Cable(S) CBL-PWCD-0160-IS 1 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Fan(s) FAN-0124L4 1 12 CM x12 CM fan
Front Bezel MCP-210-73102-0B 1 SC731D Front Control Bezel Assembly w/o Card Reader
Drive Tray(s) MCP-220-73101-0B 4 SC731 Tool-less Internal 3.5inch HDD Tray
Power Supply & Accessory PWS-903-PQ 1 PS2 900W Multi-Output Power Supply 80Plus Gold
Mounting Rail(s) MCP-290-73102-0N 1 SC731 Card Reader Rail
Optional Parts List
Part Number Qty Description
Adapter Cable CBL-0454L - USB3.0 to 2.0 adapter cable - 30cm(19pin male to 9pin female)
LCD MCP-220-00095-0B - 5.25" USB LCD Kit
2.5" HDD Bracket MCP-220-73201-0N - HDD Cage (4x Internal 2.5" fixed HDD bays)
Card Reader MCP-450-73101-0B - All-In-One card reader (for SC732D only)
Heatsink / Retention - - Please refer to our Thermal Components Matrix
Motherboard (for CSE- 732D4-903B)
X9SAE X9SAE-V X10SLQ X10SL7-F
X10SLM+-LN4F X10SLM+-F X10SLH-F X10SLM-F
X10SLL-F X10SLL-S X10SLL-SF X10SLA-F
X10SLL+-F X10SAE C7Z87-OCE X10SAT
X10SLQ-L X11SSQ X11SAE X11SAE-F
X11SAT X11SAT-F C7Z170-OCE C7Z170-SQ
X11SSQ-L X11DAi-N C7Z270-CG C7Z270-PG
C7Z270-CG-L C7Z370-CG-L
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Servers (for CSE- 732D4-903B)
5037A-i 7038A-I
