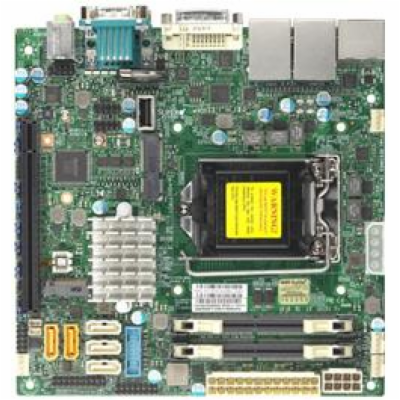

SUPERMICRO MB E3-1585v5, C236, 2xSO-DIMM DDR4 ECC, 4xSATA3, PCIe 3.0 x16, 1xM.2, DVI-A, 4x LAN, IPMI
SUPERMICRO MB E3-1585v5, C236, 2xSO-DIMM DDR4 ECC, 4xSATA3, PCIe 3.0 x16, 1xM.2, DVI-A, 4x LAN, IPMI
31927 Kč
26386 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: MBD-X11SSV-M4F-O
Kód produktu: 18362415
Výrobce: SUPERMICRO
Záruka: 36 měsíců
Popis produktu
Product SKUs
MBD-X11SSV-M4F X11SSV-M4F
Physical Stats
Form Factor Mini-ITX
Dimensions 6.7" x 6.7" (17.02cm x 17.02cm)
Processor/Cache
CPU Intel® Xeon® processor E3-1585 V5
Socket FCBGA1440 supported; QPI up to 8.0GT/s; CPU TDP support 65W
System Memory
Memory Capacity
Up to 32GB Unbuffered ECC SO-DIMM, DDR4-2133MHz, in 2 DIMM slots
Memory Type 2133/1866/1600MHz ECC DDR4 SODIMMs
DIMM Sizes 4GB, 8GB, 16GB
Memory Voltage 1.2 V
Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C236
SATA Intel® C236 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Intel RSTe
Network Controllers Single LAN with Intel® PHY I219LM LAN controller
Single LAN with Intel® Ethernet Controller I210-AT
IPMI Shared LAN with I210-AT
Dual LAN with Intel® Ethernet Controller I350-AM2
Audio ALC 888S HD Audio
Graphics Aspeed AST2400 BMC
*Intel Iris Pro P580 for VHD*
Input / Output
USB 5 USB 2.0 ports (4 via header, 1 Type A)
4 USB 3.0 ports (4 rear)
Video Output 1 DVI - A
1 Aspeed AST2400 BMC
*Intel Iris Pro P580 for VHD*
Serial Port / Header
1 COM Port in RJ45 Socket
TPM 1 TPM 1.2 Header
Expansion Slots
PCI-E 1 PCI-E 3.0 x16
Mini PCI-E with mSATA support Bifurcation support on PCIE x16 slot
M.2 Interface: PCIe 3.0 x4 and SATA
Form Factor: 2242, 2280
System BIOS
BIOS Type AMI UEFI
BIOS Features ACPI 5.0
DMI 2.3
PCI 3.0
Plug and Play (PnP)
SMBIOS 3.0
UEFI 2.3.1
RTC (Real Time Clock) Wakeup
USB Keyboard support
Management
Software IPMI2.0, SuperDoctor® 5, Watchdog
Power Configurations ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
Voltage +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN Total of 3 fan headers supporting up to 3 fans
Fan speed control
Pulse Width Modulated (PWM) fan connectors
PWM fan speed control
Status monitoring for on/off control
System level control
Thermal control tachometer fan connectors
Temperature Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI
LED N/A
Other Features 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, System level control, VHD, WOL
Parts List ?
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SSV-M4F 1 X11SSV-M4F Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00056-0N 1 Standard I/O Shield for X11SSV-M4
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SSV-M4F 1 X11SSV-M4F Motherboard
QRG MNL-1889-QRG 1 Motherboard Quick Reference Guide
I/O Cables CBL-0044L 4 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00056-0N 1 Standard I/O Shield for X11SSV-M4
Optional Parts List
Name Part Number Qty Description
1U I/O Shield MCP-260-00066-0B -- 1U I/O Shield for X11SSV-M4 with EMI Gasket in CSE-504/505
mSATA 64GB SSD-DM064-PHI -- Supermicro mSATA 64GB MLC
mSATA 128GB SSD-DM128-SMCMVN1 -- Supermicro mSATA 128GB MLC
TPM security module AOM-TPM-9655V -- TPM Module with Infineon 9655, RoHS/REACH,PBF;
Vertical
Chassis (Optimized for X11SSV-M4F)
Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SC504-203B
SC504-203B
SC505-203B
SC505-203B
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Server (Optimized for X11SSV-M4F)
Server Name
SYS-5019S-TN4
Popis produktu
Product SKUs
MBD-X11SSV-M4F X11SSV-M4F
Physical Stats
Form Factor Mini-ITX
Dimensions 6.7" x 6.7" (17.02cm x 17.02cm)
Processor/Cache
CPU Intel® Xeon® processor E3-1585 V5
Socket FCBGA1440 supported; QPI up to 8.0GT/s; CPU TDP support 65W
System Memory
Memory Capacity
Up to 32GB Unbuffered ECC SO-DIMM, DDR4-2133MHz, in 2 DIMM slots
Memory Type 2133/1866/1600MHz ECC DDR4 SODIMMs
DIMM Sizes 4GB, 8GB, 16GB
Memory Voltage 1.2 V
Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C236
SATA Intel® C236 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Intel RSTe
Network Controllers Single LAN with Intel® PHY I219LM LAN controller
Single LAN with Intel® Ethernet Controller I210-AT
IPMI Shared LAN with I210-AT
Dual LAN with Intel® Ethernet Controller I350-AM2
Audio ALC 888S HD Audio
Graphics Aspeed AST2400 BMC
*Intel Iris Pro P580 for VHD*
Input / Output
USB 5 USB 2.0 ports (4 via header, 1 Type A)
4 USB 3.0 ports (4 rear)
Video Output 1 DVI - A
1 Aspeed AST2400 BMC
*Intel Iris Pro P580 for VHD*
Serial Port / Header
1 COM Port in RJ45 Socket
TPM 1 TPM 1.2 Header
Expansion Slots
PCI-E 1 PCI-E 3.0 x16
Mini PCI-E with mSATA support Bifurcation support on PCIE x16 slot
M.2 Interface: PCIe 3.0 x4 and SATA
Form Factor: 2242, 2280
System BIOS
BIOS Type AMI UEFI
BIOS Features ACPI 5.0
DMI 2.3
PCI 3.0
Plug and Play (PnP)
SMBIOS 3.0
UEFI 2.3.1
RTC (Real Time Clock) Wakeup
USB Keyboard support
Management
Software IPMI2.0, SuperDoctor® 5, Watchdog
Power Configurations ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
Voltage +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN Total of 3 fan headers supporting up to 3 fans
Fan speed control
Pulse Width Modulated (PWM) fan connectors
PWM fan speed control
Status monitoring for on/off control
System level control
Thermal control tachometer fan connectors
Temperature Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI
LED N/A
Other Features 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, System level control, VHD, WOL
Parts List ?
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SSV-M4F 1 X11SSV-M4F Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00056-0N 1 Standard I/O Shield for X11SSV-M4
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SSV-M4F 1 X11SSV-M4F Motherboard
QRG MNL-1889-QRG 1 Motherboard Quick Reference Guide
I/O Cables CBL-0044L 4 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00056-0N 1 Standard I/O Shield for X11SSV-M4
Optional Parts List
Name Part Number Qty Description
1U I/O Shield MCP-260-00066-0B -- 1U I/O Shield for X11SSV-M4 with EMI Gasket in CSE-504/505
mSATA 64GB SSD-DM064-PHI -- Supermicro mSATA 64GB MLC
mSATA 128GB SSD-DM128-SMCMVN1 -- Supermicro mSATA 128GB MLC
TPM security module AOM-TPM-9655V -- TPM Module with Infineon 9655, RoHS/REACH,PBF;
Vertical
Chassis (Optimized for X11SSV-M4F)
Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SC504-203B
SC504-203B
SC505-203B
SC505-203B
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Server (Optimized for X11SSV-M4F)
Server Name
SYS-5019S-TN4
