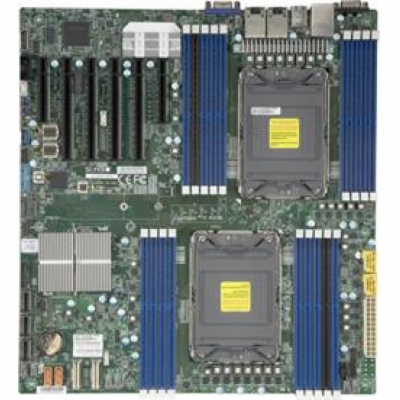

Supermicro MBD-X12DPI-N6-B SUPERMICRO MB 2xLGA4189, iC621A, 18x DDR4 ECC, 4xNVMe, 14xSATA3, M.2, 6x PCIe4.0, 2x 1Gb LAN,IPMI, bulk
Supermicro MBD-X12DPI-N6-B SUPERMICRO MB 2xLGA4189, iC621A, 18x DDR4 ECC, 4xNVMe, 14xSATA3, M.2, 6x PCIe4.0, 2x 1Gb LAN,IPMI, bulk
22512 Kč
18605 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: MBD-X12DPi-N6-B
Kód produktu: 22510964
Výrobce: SUPERMICRO
Záruka: 36 měsíců
Popis produktu
3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Intel® C621A
Up to 4TB RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slotsP1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 series only.
2 PCI-E 4.0 x8, 4 PCI-E 4.0 x16,2 PCI-E 4.0 NVMe x8 Internal Port(s)
M.2 Interface: 1 PCI-E 4.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key
Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Dual LAN with 10GBase-T with Intel® X550
2 VGA (1 rear bezel, 1 front panel) ports
Specifications
Product SKUs
MBD-X12DPi-NT6
X12DPi-NT6
Physical Stats
Form Factor
E-ATX
Dimension
12" x 13" (30.48cm x 33.02cm)
Processor
CPU
3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core
Up to 40 cores
System Memory
Memory Capacity
18 DIMM slots
Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz
Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB ECC RDIMM, DDR4-3200MHz
P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only.
Memory Type
3200/2933/2666MHz ECC 3DS DDR4 LRDIMM, RDIMM
DIMM Sizes
LRDIMM: 256GB
RDIMM: 256GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
Intel® C621A
SATA
Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Network Controllers
Dual LAN with 10GBase-T with Intel® X550
Input / Output
SATA
14 SATA3 (6Gbps) port(s)
LAN
2 RJ45 10 Gigabit Ethernet LAN ports
USB
7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
2 USB 2.0 port(s) (2 via header)
Video Output
2 VGA (1 rear bezel, 1 front panel) port(s)
Serial Port
2 COM Port(s) (1 header; 1 rear)
TPM
1 TPM Header
Expansion Slots
PCI-E
4 PCI-E 4.0 x16,
2 PCI-E 4.0 x8
M.2
M.2 Interface: 1 PCI-E 4.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type
AMI UEFI
Management
Software
SuperDoctor® 5, SUM , KVM with dedicated LAN, SPM , Intel® Node Manager, SSM , IPMI2.0 , Watchdog
System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
PC Health Monitoring
Voltage
VBAT, System temperature, PCH temperature, Monitors CPU voltages, Memory temperature, CPU temperature, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, Memory Voltages, LAN temperature, 8 -fan status
LED
UID/Remote UID
Power LED
BMC/IPMI Heartbeat LED
FAN
8x 4-pin fan headers (up to 8 fans)
PWM fan speed control
Other Features
WOL
UID
RoHS
Node Manager Support
Dual Cooling Zones
CPU thermal trip support for processor protection
Control of power-on for recovery from AC power loss
Chassis intrusion header
ATX Power connector
ACPI power management
SDDC
RoT
NCSI header
Operating Environment
Operating Temperature Range
10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name
Part Number
Qty
Descrip
