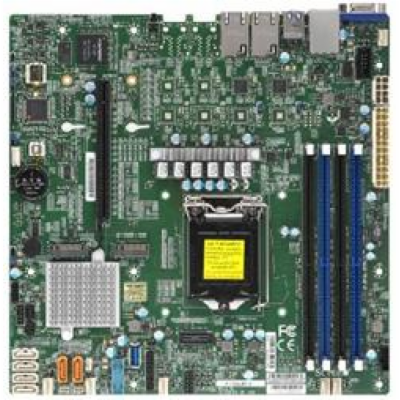

SUPERMICRO MB 1xLGA1151 (Xeon E3-21xx,i3), C246, 4xDDR4, 6xSATA3, 2xM.2, 1xPCIe3.0 x16, VGA, 2x LAN, IPMI, bulk
SUPERMICRO MB 1xLGA1151 (Xeon E3-21xx,i3), C246, 4xDDR4, 6xSATA3, 2xM.2, 1xPCIe3.0 x16, VGA, 2x LAN, IPMI, bulk
8104 Kč
6698 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: MBD-X11SCM-F-B
Kód produktu: 19936213
Výrobce: SUPERMICRO
Záruka: 36 měsíců
Popis produktu
Product SKUs
MBD-X11SCM-F X11SCM-F
Physical Stats
Form Factor microATX
Dimensions 9.6" x 9.6" (24.38cm x 24.38cm)
Processor/Cache
CPU 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
Cores / Cache 8 cores, 16 threads
Note BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core? i3/Pentium®/Celeron® Processors
System Memory
Memory Capacity Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
Memory Type 2666/2400/2133MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes 4GB, 8GB, 16GB, 32GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
On-Board Devices
Chipset Intel® C246
SATA Intel® C246 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI ASPEED AST2500
Network Controllers Dual LAN with Intel® Ethernet Controller I210-AT
Graphics ASPEED AST2500 BMC
Input / Output
SATA 6 SATA3 (6Gbps) port
LAN 2 RJ45 Gigabit Ethernet LAN ports
USB 4 USB 2.0 ports (2 rear + 2 via headers)
5 USB 3.1 Gen1 ports(2 rears, 2 via headers, 1 Type A)
Video Output 1 VGA port
Serial Port / Header 1 COM Port (1 header)
TPM 1 TPM Header
Expansion Slots
PCI-E 1 PCI-E 3.0 x16
M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
Double Height Connector
System BIOS
BIOS Type UEFI 256Mb
BIOS Features ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0
Management
Software Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
System Management Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations ACPI Power Management
PC Health Monitoring
Voltage +12V, +3.3V, +5V, +5V standby, 6 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
LED UID/Remote UID, CPU / System Overheat LED
Other Features ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, Node Manager Support, UID, WOL
Operating Environment
Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Parts List ?
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SCM-F 1 X11SCM-F Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00130-0N 1 STD I/O Shield for X11SCM-F with EMI Gasket
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SCM-F 1 X11SCM-F Motherboard
QRG MNL-2075-QRG 1 Motherboard Quick Reference Guide
I/O Cables CBL-0044L 6 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00130-0N 1 STD I/O Shield for X11SCM-F with EMI Gasket
Optional Parts List
Name Part Number Qty Description
1U I/O Shield MCP-260-00131-0N 1 1U I/O Shield for X11SCM-F with EMI Gasket (for standard 1U chassis: SC813M, SC815, SC512, SC514, SC515, SC113)
1U I/O Shield MCP-260-00132-0B 1 1U I/O Shield for X11SCM-F with EMI Gasket (for standard 1U chassis: SC510, SC504, SC505)
TPM security module AOM-TPM-9670H 1 SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
TPM security module AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
TPM security module AOM-TPM-9671H 1 SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
TPM security module AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
Chassis (Optimized for X11SCM-F)
Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SC813MFTQC-350CB2
SC813MFTQC-R407CB
SC512F-350B1
SC515-350
SC515-R407
SC514-R407C
SC113MTQ-R400CB
SC825TQC-R740LPB
SC825TQC-R802LPB
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Server (Optimized for X11SCM-F)
Server Name
SYS-5019C-M
SYS-5019C-MR
