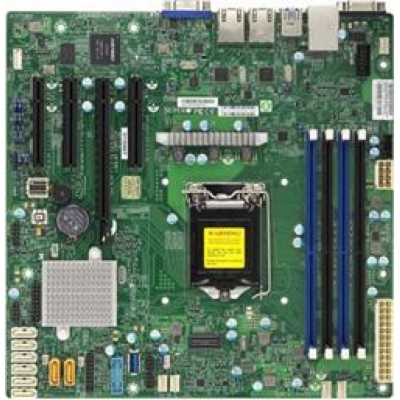

SUPERMICRO MB 1xLGA1151, iC236,DDR4,8xSATA3,PCIe 3.0 (1 x8, 1 x8 (in x16), 2 x4 (in x8)), IPMI
SUPERMICRO MB 1xLGA1151, iC236,DDR4,8xSATA3,PCIe 3.0 (1 x8, 1 x8 (in x16), 2 x4 (in x8)), IPMI
7310 Kč
6041 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: MBD-X11SSM-F-O
Kód produktu: 16361177
Výrobce: SUPERMICRO
Záruka: 36 měsíců
Popis produktu
Product SKUs
MBD-X11SSM-F X11SSM-F
Physical Stats
Form Factor Micro-ATX
Dimensions 9.6" x 9.6" (24.38cm x 24.38cm)
Processor/Cache
CPU Intel® 7th/6th Generation Core i3 series, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® processor E3-1200 v6/v5.
Single Socket H4 (LGA 1151) supported, CPU TDP support 80W
Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core? i3 Processors and Intel® Xeon® Processor E3-1200 v6 series
System Memory
Memory Capacity 64GB Unbuffered ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes 4GB, 8GB, 16GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
On-Board Devices
Chipset Intel® C236
SATA Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI ASPEED AST2400 BMC
Network Controllers Dual LAN with Intel® Ethernet Controller I210-AT
Graphics Aspeed AST2400 BMC
Input / Output
USB 6 USB 2.0 ports (2 rear + 4 headers)
5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
Video Output 1 VGA port
Serial Port / Header 2 COM Ports (1 rear, 1 header)
TPM TPM Header
Expansion Slots
PCI-E 1 PCI-E 3.0 x8 (in x16 slot),
1 PCI-E 3.0 x8,
2 PCI-E 3.0 x4 (in x8 slot)
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.7.1
UEFI 2.3.1
Management
Software Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
Power Configurations ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
Voltage +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
LED CPU / System Overheat LED, UID/Remote UID
Other Features Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Node Manager Support, WOL
Operating Environment
Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Parts List ?
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SSM-F 1 X11SSM-F Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SSM-F with EMI Gasket
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SSM-F 1 X11SSM-F Motherboard
QRG MNL-1785-QRG 1 Motherboard Quick Reference Guide
I/O Cables CBL-0044L 6 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SSM-F with EMI Gasket
Chassis (Optimized for X11SSM-F)
Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SC813MFTQC-505CB
SC813MFTQ-R400CB
SC813MTQ-350CB
SC512L-200B
SC512F-350B
SC811TQ-441B
SC113MFAC2-341CB
SC113MFAC2-R606CB
SC510-203B
SC813MFTQC-350CB
SC825TQ-R720LPB
2U: SC213LT-600LPB
2U: SC823TQ-653LPB
SC825TQC-R802LPB
2U Heatsink:SNK-P0046A4
SC833T-653B
2U Heatsink:SNK-P0046A4
SC731i-403B
SC732I-500B
SC731i-300B
SC732D3-1200B
SC732D4-903B
SC732i-865B
SC733TQ-668B
SC732D4F-903B
2U Heatsink:SNK-P0046A4
SC842i-500B
SC842TQ-665B
SC743AC-1200B-SQ
SC745BAC-R1K28B2
2U Heatsink:SNK-P0046A4
