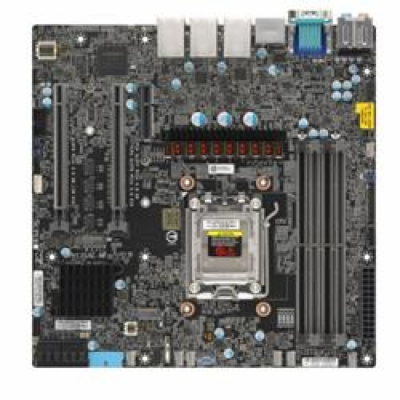

SUPERMICRO MB 1xAM5 (LGA-1718), 4x DDR5, 4x SATA, 2x M.2, PCIe 5.0 (2 x16, 1 x4), 2x1Gb,IPMI
SUPERMICRO MB 1xAM5 (LGA-1718), 4x DDR5, 4x SATA, 2x M.2, PCIe 5.0 (2 x16, 1 x4), 2x1Gb,IPMI
12683 Kč
10482 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: MBD-H13SAE-MF-B
Kód produktu: 24424544
Výrobce: SUPERMICRO
Záruka: 36 měsíců
Popis produktu
Product SKUs
MBD-H13SAE-MF
Physical Stats
Form Factor
Micro-ATX
Dimension
9.6" x 9.6" (24.384cm x 24.384cm)
Processor
CPU
AMD Ryzen™ 7000 series Processors
Single Socket LGA-1718 (Socket AM5) supported, CPU TDP supports Up to 170W TDP
Core
Up to 16 cores, 32 threads
System Memory
Memory Capacity
4 DIMM slots
Memory Type
5200/4800/3600 MT/s Up to 192GB of memory with speeds of up to 5200MT/s (1DPC)/ 3600MT/s (2DPC)
DIMM Sizes
8GB, 16GB, 24GB, 32GB, 48GB
Memory Voltage
1.1V
On-Board Devices
Chipset
B650
SATA
4 SATA3 ports; RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Audio
ALC 888S HD Audio
Network Controllers
Dual LAN with Intel® i210 Gigabit Ethernet Controller
Single LAN with ASPEED AST2600 BMC, Dedicated LAN for IPMI
Input / Output
USB
1 USB 3.2 Gen2x2 port(s) (1 rear type C 20Gb)
5 USB 3.2 Gen2 port(s) (3 rear type A 10Gb; 2 rear type C DP 1.4 Alt mode)
2 USB 3.2 Gen1 port(s) (2 headers 5Gb)
1 USB 2 port(s) (1 via header 2 ports by a header)
Video Output
1 HDMI 2.0 port(s), 1 DP 1.4a port(s), 2 rear type C port(s) DP 1.4 Alt mode
Serial Port
1 COM Port(s) (1 header)
TPM
1 TPM Header AOM-TPM-9670V
Expansion Slots Riser Card For 1U RSC-S-6G5
PCIe
1 PCIe 4.0 x4,
2 PCIe 5.0 x16 slots (16/NA or 8/8)
M.2
M.2 Interface: 2 PCIe 5.0 x4, RAID 0 & 1
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type
AMI 32MB SPI Flash EEPROM
BIOS Features
ACPI 6.4
SMBIOS 3.5 or later
UEFI 2.8
Plug and Play (PnP)
USB Keyboard support
Management
Power Configurations
Power-on mode control for AC power loss recovery, Power button override mechanism, S3/S4/S5
Security
Hardware
Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
System temperature, PCH temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
FAN
7x 4-pin fan headers (up to 7 fans)
Operating Environment
Operating Temperature Range
0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
-20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range
10% - 85% (non-condensing)
Non Operating Relative Humidity Range
10% - 95% (non-condensing)
??
