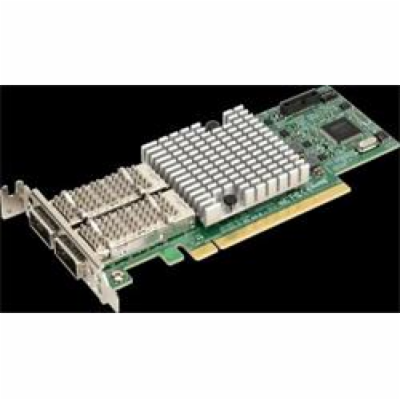

SUPERMICRO AOC-S100G-M2C Dual QSFPF28 100Gb/s, Mellanox ConnectX-4EN, PCIe3 x16
SUPERMICRO AOC-S100G-M2C Dual QSFPF28 100Gb/s, Mellanox ConnectX-4EN, PCIe3 x16
18150 Kč
15000 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: AOC-S100G-M2C-O
Kód produktu: 22512323
Výrobce: SUPERMICRO
Záruka: 36 měsíců
Popis produktu
Add-on Card
The Supermicro AOC-S100G-m2C provides exceptionally high performance at 100Gb/s Ethernet connectivity. Utilizing the Mellanox ConnectX ® -4 EN chipset with features that such as VXLAN and NVGRE, this card offers network flexibility, high bandwidth with specific hardware offload for I/O virtualization, and efficiently optimizes bandwidth demand from virtualized infrastructure in the data center or cloud deployments. The AOC-S100G-m2C supports the RoCE specification with CPU offload, delivering low-latency and high-efficiency over Ethernet networks. Supermicro ® Asset Management and thermal detection provide an extra layer of controller health management and peace of mind. The Supermicro AOC-S100G-m2C is the building block of choice for the next generation of high speed Ethernet data center networks.
This product is only available through Supermicro.
Key Features
• Dual QSPF28 Connectors
• Low-Profile, Short Length Standard Form Factor
• PCI-E 3.0 x16
• Mellanox ConnectX ® -4 EN Ethernet Controller
• Asset Management Features with thermal sensor
• Hardware offloads for VXLAN, NVGRE and GENEVE
encapsulated traffic
• Low latency RDMA over Converged Ethernet (RoCE)
• SR-IOV compliant
• Jumbo Frames support up to 9.6kB
• PXE Support
• Erasure Coding Offload
• NC-SI for IPMI support
• RoHS compliant 6/6
Compliance
RoHS
RoHS Compliant 6/6, Pb Free
Downloads
User's Guide
[ Download ]
Datasheet
[ Download ]
Driver
Choose the latest CDR-NIC folder, and then click on Intel & Mellanox folder for driver [ Download ]
Driver CD
Click on the latest CDR-NIC ISO file to download [ Download ]
Specification
• General
- Mellanox ConnectX ® -4 EN dual-port 100Gbps controller
- Compact size low-profile standard form factor
- PCI-E 3.0 x16 interface
- Dual QSFP28 connectors
- Max power consumption: 16.3W
• Host Interface
- PCI-E 3.0x16
- Message Signal Interrupt (MSI-X)
• Networking Features
- IEEE 802.2bj, 802.3bm 100 Gigabit Ethernet
- 25G Ethernet Consortium 25, 50 Gigabit Ethernet
- IEE 802.3ba 40 Gigabit Ethernet
- IEEE802.3ae 10 Gigabit Ethernet
- IEEE802.3az Energy Efficient Ethernet
- IEEE 802.3ap based auto-engotiation and KR startup
- IEEE 802.ad, 802.1AX Link Aggregation
- IEEE 802.1Q, 802.1p VLAN tags and priority
- IEEE802.1Qau (QCN) – Congestion Notification
- IEEE 802.1Qaz (ETS)
- IEEE 802.1Qbb (PFC)
- IEEE 802.1Qbg
- IEEE 1588v2
- Jumbo frame support (9.6KB)
• CPU Offload Features
- RDMA over Converged Ethernet (RoCE)
- TCP/UDP/IP stateless offload
- LSO, LRO, checksum offload
- RSS, TSS, HDS, VLAN insertion/stripping. Receive flow
steering
- Intelligent interrupt coalescence
• Storage Offloads
- RAID offload - erasure coding (Reed-Solomon) offload
• Overlay Networks
- Stateless offloads for overlay networks and tunneling protocols
- Hardware offload of encapsulation and decapsulation of NVGRE and VXLAN overlay networks
• Hardware-Based I/O Virtualization
- Single Root IOV
- Multi-function per port
- Address translation and protection
- Multiple queues per virtual machine
- Enhanced QoS for vNICs
- VMware NetQueue support
• Virtualization Features
- SR-IOV: up to 256 Virtual Functions
- SR-IOV: up to 16 Physical Functions per port
- 1K ingress and egress QoS levels
- Guaranteed QoS for VMs
• Operating Systems/Distribution
- RHEL/CentOS
- Windows
- FreeBSD
- VMware
- OpenFabrics Enterprise Distribution (OFED)
- OpenFabrics Windows Distribution (WinOF-2)
• Management Features
- Asset Management features with thermal sensor
- NC-SI for IPMI Support
• Remote Boot
- Remote boot over iSCSI
- PXE and UEFI
• Operating Conditions
- Operating temperature: 0°C to 55°C (32°F to 131°F)
- Storage temperature: -40°C to 70°C (-40°F to 158°F)
- Storage humidity: 90% non-condensing relative humidity at 35°C
• Physical Dimensions
- Card PCB dimensions: 16.76cm x 6.89cm (6.6in x 2.71in) (LxW)
- Height of end brackets: standard – 12cm (4.725in), low-profile – 8cm (3.15in)
• Weight
- 116.12g (0.2560lb)
• Supported Platforms
- Supermicro® motherboards with minimum PCI-E 3.0 x16 expansion slot
- Supermicro® server systems with low-profile or full-height PCI-E 3.0 x16 expansion slot
- NC-SI feature is only supported by Supermicro® motherboards with corresponding NC-SI connectors
Parts List
Parts List
Product Part Number
Form Factor
Speed
PCI-E
Connector Type
Total Ports
Chipset
AOC-S40G-i1Q
Standard Low Profile
40GbE
PCI-E 3.0 x8
QSFP+
1
Intel XL710
AOC-S40G-i2Q
Standard Low Profile
40GbE
PCI-E 3.0 x8
QSFP+
2
Intel XL710
