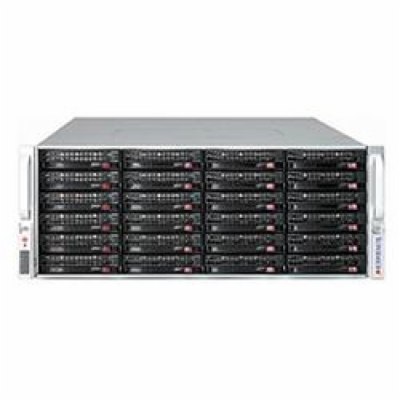

SUPERMICRO 4U chassis 36x 3,5" HS SAS/SATA (24x Front + 12x Rear/4xNVMe opt) +2x 2.5"opt., 2x1200W (80PLUS Titanium)
SUPERMICRO 4U chassis 36x 3,5" HS SAS/SATA (24x Front + 12x Rear/4xNVMe opt) +2x 2.5"opt., 2x1200W (80PLUS Titanium)
72521 Kč
59935 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: CSE-847BE1C4-R1K23LPB-5Y
Kód produktu: 12693528
Výrobce: SUPERMICRO
Záruka: 36 měsíců
Popis produktu
Product SKUs
SuperChassis 847BE1C4-R1K23LPB
Form Factor
4U chassis support for motherboard size 12" x 10", 13.68" x 13", 9.6" x 9.6"
Processor Support
Dual and Single Intel® and AMD processors
Dimensions
Height
7" (178 mm)
Width
17.2" (437 mm)
Depth
27.5" (699 mm)
Gross Weight
118 lbs (53.52 kg)
Net Weight
86 lbs (39 kg)
Packaging (W x H x L)
27.2" (691 mm) x 17.4" (442 mm) x 39.6" (1006 mm)
Available Color
Black
Expansion Slots
7x Low-profile expansion slot(s)
Drive Bays
Optional 2x 2.5" hot-swap drive bay
36x 3.5" hot-swap SAS/SATA drive bay with SES3
Backplane
12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH
24-Port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
Peripheral Drives
Optional 4x 2.5" internal fixed drive bay
Optional 2x 3.5" internal fixed drive bay
Front Panel
Button
Power On/Off button
System Reset button
LED
Power status LED
HDD activity LED
2 Network Activity LEDs
Unit Identification (UID) LED
Fan Fail/System Over Heat LED
Systems Cooling
Fans
7x 80mm high-performance fan(s)
System Monitoring
Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Power Efficiency
96%
Total Output Power and Input
1200W with Input 200 - 240Vac
1000W with Input 100 - 127Vac
1200W with Input 200 - 240Vdc
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
336 x 76 x 40 mm
Output Type
Backplanes (gold finger)
+12V
Max: 100A / Min: 0A (200Vdc - 240Vdc)
Max: 100A / Min: 0A (200Vac - 240Vac)
Max: 83A / Min: 0A (100Vac - 127Vac)
+5Vsb
Max: 4A / Min: 0A
Power Distributor
PDB-PT847-8824
O/P: 12V/135
+5V Max: 100A
+3.3V Max: 30A
-12V Max: 0.6A
Certification
Titanium Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
Popis produktu
Product SKUs
SuperChassis 847BE1C4-R1K23LPB
Form Factor
4U chassis support for motherboard size 12" x 10", 13.68" x 13", 9.6" x 9.6"
Processor Support
Dual and Single Intel® and AMD processors
Dimensions
Height
7" (178 mm)
Width
17.2" (437 mm)
Depth
27.5" (699 mm)
Gross Weight
118 lbs (53.52 kg)
Net Weight
86 lbs (39 kg)
Packaging (W x H x L)
27.2" (691 mm) x 17.4" (442 mm) x 39.6" (1006 mm)
Available Color
Black
Expansion Slots
7x Low-profile expansion slot(s)
Drive Bays
Optional 2x 2.5" hot-swap drive bay
36x 3.5" hot-swap SAS/SATA drive bay with SES3
Backplane
12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH
24-Port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
Peripheral Drives
Optional 4x 2.5" internal fixed drive bay
Optional 2x 3.5" internal fixed drive bay
Front Panel
Button
Power On/Off button
System Reset button
LED
Power status LED
HDD activity LED
2 Network Activity LEDs
Unit Identification (UID) LED
Fan Fail/System Over Heat LED
Systems Cooling
Fans
7x 80mm high-performance fan(s)
System Monitoring
Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Power Efficiency
96%
Total Output Power and Input
1200W with Input 200 - 240Vac
1000W with Input 100 - 127Vac
1200W with Input 200 - 240Vdc
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
336 x 76 x 40 mm
Output Type
Backplanes (gold finger)
+12V
Max: 100A / Min: 0A (200Vdc - 240Vdc)
Max: 100A / Min: 0A (200Vac - 240Vac)
Max: 83A / Min: 0A (100Vac - 127Vac)
+5Vsb
Max: 4A / Min: 0A
Power Distributor
PDB-PT847-8824
O/P: 12V/135
+5V Max: 100A
+3.3V Max: 30A
-12V Max: 0.6A
Certification
Titanium Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
