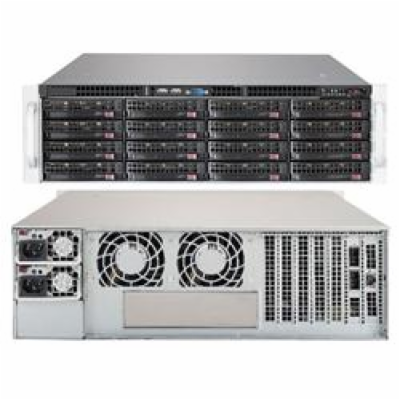

SUPERMICRO SuperChassis CSE-836BE1C-R1K03JBOD 3U, 16x3.5" hot-swap, 2x1000W
SUPERMICRO SuperChassis CSE-836BE1C-R1K03JBOD 3U, 16x3.5" hot-swap, 2x1000W
58123 Kč
48036 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: CSE-836BE1C-R1K03JBOD
Kód produktu: 12427740
Výrobce: SUPERMICRO
Záruka: 24 měsíců
Popis produktu
Product SKUs
CSE-836BE1C-R1K03JBOD SuperChassis 836BE1C-R1K03JBOD
Form Factor
3U JBOD storage chassis
Dimensions
Height 5.2" (132 mm)
Width 17.2" (437 mm)
Depth 25.5" (647 mm)
Net Weight 36 lbs (16.33 kg)
Gross Weight 75 lbs (34.02 kg)
Packaging (W x H x L) 26.6" (676 mm) x 13" (330 mm) x 39.9" (1013 mm)
Available Color Black
Drive Bays
16 x 3.5" hot-swap HDD bays for JBOD solution
Qualified SAS Controllers
AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter
AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller
Backplane
16-port 3U SAS3 12Gbps single-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD
Front Panel
Buttons Power On/Off button
System Reset Button
Unit Identification (UID) button
LEDs 1 Network Activity LEDs
Systems Cooling
Fans 3 x 8cm hot-swap redundant PWM cooling fan(s)
2 x 8cm hot-swap exhaust fan(s) & air shroud
System Monitoring
IPMI
Operating Environment (System)
Operating Temperature Range 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Power Supply
1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus
Power Efficiency 96%
Total Output Power and Input 800W with Input 100 - 127Vac
1000W with Input 200 - 240Vac
1000W with Input 200 - 240Vdc
AC Input Frequency 50-60Hz
Dimensions (L x W x H) 336 x 76 x 40 mm
Output Type Backplanes (gold finger)
+12V Max: 66.7A (100Vac - 127Vac)
Max: 83A (200Vac - 240Vac)
Max: 83A (200 - 240)
+5Vsb Max: 4A / Min: 0A
Power Distributor PDB-PT826-8824
O/P: 12V/135
+5V Max: 40
+3.3V Max: 24
-12V Max: 0.6
Certification Titanium Certified Titanium Certified
Regulatory (Power Supply)
Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
Components ?
Standard Parts List
Part Number Qty Description
Air Shroud MCP-310-39001-0N 1 SC835/836/936 Intel DP X9-X10 PC air shroud 1368x13/12x13MB
HD Backplane BPN-SAS3-836EL1 1 16-port 3U SAS3 12Gbps single-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD
Control Board CSE-PTJBOD-CB3 1 JBOD chassis power control board with IPMI remote on/off feature
Cable(S) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Cable(S) CBL-0088L 1 10.5" 4PIN FAN POWER CORD FOR 743X-645,PBF
Cable(S) CBL-0296L 3 9" 4 PIN FAN PWS EXTENSION CORD, PBF
Cable(S) CBL-CDAT-0601 1 4 Pin to 4 Pin I2C cable, 50cm, 26AWG
Cable(S) CBL-NTWK-0587 1 INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD
Cable(S) CBL-SAST-0532 4 Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s
CD-ROM & Accessory MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836
Fan(s) FAN-0125L4 2 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
Fan(s) FAN-0126L4 3 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
Drive Tray(s) MCP-220-00007-01 1 Black USB/COM port tray for SC825, 836
Drive Tray(s) MCP-220-00075-0B 16 Black gen 5.5 hot-swap 3.5" HDD tray
Power Distributor PDB-PT826-8824 1 PDB with longer 24pin for SC826B
Part(s) MCP-260-00011-0N 1 I/O shield without any opening
Part(s) MCP-290-83601-0V 1 set Silver chassis handles (left and right) for SC836/835
Power Supply & Accessory PWS-1K03A-1R 2 1U 1000W Redundant Power Supply Titanium W/PMbus 76x40x336mm,RoHS/REACH
Mounting Rail(s) MCP-410-00007-0N 1 Rail screw bag
Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
Rear Window MCP-240-83605-0N 1 836B chassis rear window (to support the optional MCP-220-83605-0N)
Optional Parts List
Part Number Qty Description
Cable CBL-SAST-0573 - External mini SAS HD to external mini SAS HD cable 28AWG (1M)
Cable CBL-SAST-0690-1 - MINI SAS HD,12G,EXT,2M,30AWG,RoHS
Cable CBL-SAST-0677 - 3m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
Drive Trays MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
Popis produktu
Product SKUs
CSE-836BE1C-R1K03JBOD SuperChassis 836BE1C-R1K03JBOD
Form Factor
3U JBOD storage chassis
Dimensions
Height 5.2" (132 mm)
Width 17.2" (437 mm)
Depth 25.5" (647 mm)
Net Weight 36 lbs (16.33 kg)
Gross Weight 75 lbs (34.02 kg)
Packaging (W x H x L) 26.6" (676 mm) x 13" (330 mm) x 39.9" (1013 mm)
Available Color Black
Drive Bays
16 x 3.5" hot-swap HDD bays for JBOD solution
Qualified SAS Controllers
AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter
AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller
Backplane
16-port 3U SAS3 12Gbps single-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD
Front Panel
Buttons Power On/Off button
System Reset Button
Unit Identification (UID) button
LEDs 1 Network Activity LEDs
Systems Cooling
Fans 3 x 8cm hot-swap redundant PWM cooling fan(s)
2 x 8cm hot-swap exhaust fan(s) & air shroud
System Monitoring
IPMI
Operating Environment (System)
Operating Temperature Range 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Power Supply
1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus
Power Efficiency 96%
Total Output Power and Input 800W with Input 100 - 127Vac
1000W with Input 200 - 240Vac
1000W with Input 200 - 240Vdc
AC Input Frequency 50-60Hz
Dimensions (L x W x H) 336 x 76 x 40 mm
Output Type Backplanes (gold finger)
+12V Max: 66.7A (100Vac - 127Vac)
Max: 83A (200Vac - 240Vac)
Max: 83A (200 - 240)
+5Vsb Max: 4A / Min: 0A
Power Distributor PDB-PT826-8824
O/P: 12V/135
+5V Max: 40
+3.3V Max: 24
-12V Max: 0.6
Certification Titanium Certified Titanium Certified
Regulatory (Power Supply)
Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
Components ?
Standard Parts List
Part Number Qty Description
Air Shroud MCP-310-39001-0N 1 SC835/836/936 Intel DP X9-X10 PC air shroud 1368x13/12x13MB
HD Backplane BPN-SAS3-836EL1 1 16-port 3U SAS3 12Gbps single-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD
Control Board CSE-PTJBOD-CB3 1 JBOD chassis power control board with IPMI remote on/off feature
Cable(S) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Cable(S) CBL-0088L 1 10.5" 4PIN FAN POWER CORD FOR 743X-645,PBF
Cable(S) CBL-0296L 3 9" 4 PIN FAN PWS EXTENSION CORD, PBF
Cable(S) CBL-CDAT-0601 1 4 Pin to 4 Pin I2C cable, 50cm, 26AWG
Cable(S) CBL-NTWK-0587 1 INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD
Cable(S) CBL-SAST-0532 4 Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s
CD-ROM & Accessory MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836
Fan(s) FAN-0125L4 2 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
Fan(s) FAN-0126L4 3 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
Drive Tray(s) MCP-220-00007-01 1 Black USB/COM port tray for SC825, 836
Drive Tray(s) MCP-220-00075-0B 16 Black gen 5.5 hot-swap 3.5" HDD tray
Power Distributor PDB-PT826-8824 1 PDB with longer 24pin for SC826B
Part(s) MCP-260-00011-0N 1 I/O shield without any opening
Part(s) MCP-290-83601-0V 1 set Silver chassis handles (left and right) for SC836/835
Power Supply & Accessory PWS-1K03A-1R 2 1U 1000W Redundant Power Supply Titanium W/PMbus 76x40x336mm,RoHS/REACH
Mounting Rail(s) MCP-410-00007-0N 1 Rail screw bag
Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
Rear Window MCP-240-83605-0N 1 836B chassis rear window (to support the optional MCP-220-83605-0N)
Optional Parts List
Part Number Qty Description
Cable CBL-SAST-0573 - External mini SAS HD to external mini SAS HD cable 28AWG (1M)
Cable CBL-SAST-0690-1 - MINI SAS HD,12G,EXT,2M,30AWG,RoHS
Cable CBL-SAST-0677 - 3m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
Drive Trays MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
