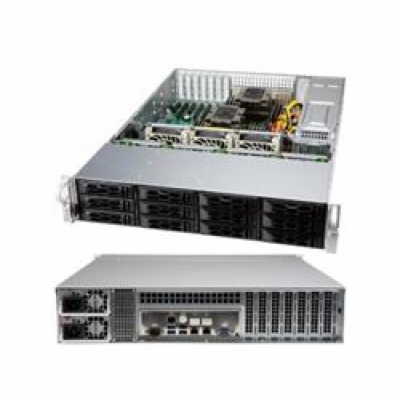

SUPERMICRO 2U chassis 12x 3,5" HS SAS3/SATA/NVMe, 2x920W (80PLUS Platinum)
SUPERMICRO 2U chassis 12x 3,5" HS SAS3/SATA/NVMe, 2x920W (80PLUS Platinum)
21783 Kč
18002 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: CSE-LA26AC12-R920LP1
Kód produktu: 23562552
Výrobce: SUPERMICRO
Záruka: 36 měsíců
Popis produktu
Key Features
2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".
Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
12x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay with SES3
Optional rear 2x 2.5" hot-swap drive bay kit
12-port LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Device
920W 1U Redundant Power Supply
7x low-profile expansion slot(s)
3x 8cm high-performance PWM fan(s)
Support service tag for system information
Comes with standard 2U package with 2-layer carton and SMC logo
Product SKUs
SuperChassis LA26AC12-R920LP1
Form Factor
2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".
Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
Processor Support
Dual and Single Intel® and AMD processors
Dimensions
Height
3.5" (89 mm)
Width
17.2" (437 mm)
Depth
25.5" (647 mm)
Gross Weight
69 lbs (31.3 kg)
Net Weight
35.3 lbs (16 kg)
Packaging (W x H x L)
26.4" (671 mm) x 11.4" (290 mm) x 34.3" (871 mm)
Available Color
Black
Expansion Slots
7x Low-profile expansion slot(s)
Drive Bays
Optional 2x 2.5" hot-swap drive bay
12x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay with SES3
Backplane
12-Port 2U LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS
Front Panel
Button
Power On/Off button
System Reset button
LED
Power status LED
HDD activity LED
2 Network Activity LEDs
Unit Identification (UID) LED
Fan Fail/System Over Heat LED
Systems Cooling
Fans
3x 8cm high-performance PWM fan(s)
System Monitoring
Optional Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
Power Supply
1U 920W redundant power supply
Power Efficiency
94+%
Total Output Power and Input
920W with Input 200 - 240Vac
920W with Input 100 - 127Vac
920W with Input 200 - 240Vdc
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
336 x 76 x 40 mm
Output Type
Backplanes (connector)
+12V
Max: 75A / Min: 0A (200Vac - 240Vac)
Max: 75A / Min: 0A (100Vac - 127Vac)
+5Vsb
Max: 4A
Power Distributor
PDB-PT826-L8824
O/P: 12V/75
+5V Max: 30A
+3.3V Max: 24A
-12V Max: 0.6A
Certification
Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
BSMI
CCC
CE/EMC
UL/CB
Standard Parts List
Part Number
Qty
Description
HD Backplane
BPN-SAS3-LA26A-N12
1
2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS
Cable(s)
CBL-0071L
1
ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Part(s)
MCP-120-00115-0N
7
Blank LP L-bracket with 4x4 vent holes
Part(s)
MCP-290-82603-0V
1
Silver left chss handle w/ ctrl panel for SC826 cable 235mm
Part(s)
MCP-290-82616-0V
1
OEM Silver right chassis handle for SC826(no logo label)
Part(s)
MCP-230-82602-0N
1
Top cover for SC826B/216B/825B
Fan(s)
FAN-0181L4
3
80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis
Drive Tray(s)
MCP-220-00184-0B
12
Black gen-9 tool-less cost-effective 3.5
Power Distributor
PDB-PT826-L8824
1
2U cost effective PDB support up to 1200W.,RoHS
Power Supply & Accessory
PWS-920P-1R2
2
1U, platinum efficiency,920W,AC input:100-127/200-240Vac,HF,
Rear Window
MCP-240-82608-0N
1
216B/826B LP rear window,RoHS/REACH,PBF
Optional Parts
Part Number
Qty
Description
Air Shroud
MCP-310-29001-0N
-
SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
MCP-310-82603-0B
-
Mylar air shroud for 2U & 4U X11SPH,RoHS
Cable
CBL-PWCD-0160-IS •
-
PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,
