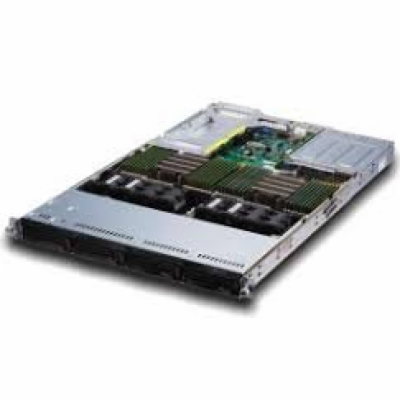

SUPERMICRO 1U AMD Ultra server 2x SP3, 32x DDR4, 2x PCIe x16, 2x PCIe x8, 4x 1Gb, IPMI
SUPERMICRO 1U AMD Ultra server 2x SP3, 32x DDR4, 2x PCIe x16, 2x PCIe x8, 4x 1Gb, IPMI
60993 Kč
50407 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: AS -1023US-TR4
Kód produktu: 22455486
Výrobce: SUPERMICRO
Záruka: 60 měsíců
Popis produktu
Product SKUs
AS -1023US-TR4 A+ Server 1023US-TR4
Motherboard
H11DSU-iN
Processor/Chipset
CPU Dual AMD EPYC™ 7001/7002* series Processors
(* Board revision 2.x required)
Socket SP3
Supports CPU cTDP up to 280W**
Cores Up to 32 Cores (Board revision 1.x + 7001 Processors)
Up to 64 Cores (Board revision 2.x + 7002 Processors)
Chipset System on Chip (SoC)
Note ** Certain CPUs with high TDP higher than 225W may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
System Memory
Memory Capacity 32 DIMM slots
Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors)
Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors)
8-channel memory bus
Memory Type DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors)
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors)
DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*
(* Board revision 2.x required + 7002 Processors)
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
VGA ASPEED AST2500 BMC
Expansion Slots
1U 2 PCI-E x16 (FH/HL 9.5") slots
2 PCI-E x8 slots (1 LP, 1 internal proprietary LP slot)
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
Input / Output
SATA 4 SATA3 (6 Gbps) ports
LAN Quad Gigabit LAN ports
1 RJ45 Dedicated IPMI LAN port
USB 3 USB 3.0 ports (2 rear + 1 Type A)
VGA 1 VGA port
SAS 4 SAS3 ports support via optional Add-on Card
NVMe 4 NVMe support with optional cables
Others 1 COM port (rear)
2 SATA DOM power connector
TPM 1.2 header
System BIOS
BIOS Type AMI 128Mb SPI Flash EEPROM
BIOS Features Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 5.1
USB Keyboard Support
SMBIOS 3.1.1
Chassis
Form Factor 1U
Model CSE-819UTS-R1K02P-T
Dimensions
Height 1.7" (43mm)
Width 17.2" (437mm)
Depth 29" (737mm)
Weight Net Weight: 26 lbs (11.8 kg)
Gross Weight: 41 lbs (18.6 kg)
Front Panel
Buttons Power On/Off button
System Reset button
LEDs Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED
Drive Bays
Hot-swap Four 3.5" Hot-swap SATA drive bays
Backplane
HDD Backplane Supports 4 SATA3 or 4 NVMe or 4 SAS3 HDD
System Cooling
Fans 8 heavy-duty PWM fans with optimal fan speed control
Air Shroud 2 Air Shroud
Power Supply
1000W Redundant Power Supplies with PMBus
Total Output Power 800W/1000W
Dimension
(W x H x L) 73.5 x 40 x 203 mm
Input 100-127Vac / 9.8 - 7A / 50-60Hz
200-240Vac / 7 - 5A / 50-60Hz
200-240Vdc / 7 - 5A (for CCC only)
+12V Max: 66.7A / Min: 0A (100-127Vac)
Max: 83A / Min: 0A (200-240Vac)
Max: 83A / Min: 0A (200-240Vdc)
12Vsb Max: 2.1A / Min: 0A
Output Type 25 Pairs Gold Finger Connector
Certification Titanium Level96% Titanium Level
[ Test Report ]
PC Health Monitoring
CPU Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
CPU switching voltage regulator
FAN Up to 8-fan status tachometer monitoring
Up to eight 4-pin fan headers
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 8x Fan connectors
I2C Temperature Sensing Logic
LED CPU / System Overheat LED
Other Features Chassis Intrusion Detection
Chassis Intrusion Header
Operating Environment / Compliance
RoHS
RoHS Compliant
Environmental Spec. Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
