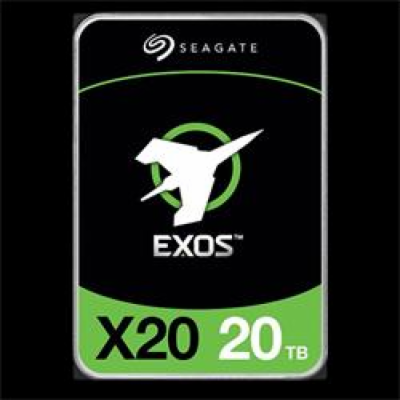

Seagate Exos X20 3,5" - 20TB (server) 7200rpm/SAS/256MB/512e/4kN
Seagate Exos X20 3,5" - 20TB (server) 7200rpm/SAS/256MB/512e/4kN
11806 Kč
9757 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: ST20000NM002D
Kód produktu: 22500063
Výrobce: SEAGATE
Váha: 0,67 kg
Záruka: 60 měsíců
Popis produktu
Specifications
SATA 6 Gb/s
12 Gb/s SAS
SATA 6 Gb/s
12 Gb/s SAS
Capacity
20 TB
20 TB
18 TB
18 TB
Standard Model FastFormat[superscript™] (512e/4Kn)[superscript1]
ST20000NM007D
ST20000NM002D
ST18000NM003D
ST18000NM000D
SED Model FastFormat (512e/4Kn)[superscript1,2]
ST20000NM000D
ST20000NM003D
ST18000NM004D
ST18000NM001D
SED-FIPS FastFormat (512e/4Kn)[superscript1,2]
ST20000NM005D
ST18000NM002D
FEATURES
Helium Sealed-Drive Design
Yes
Yes
Yes
Yes
Conventional Magnetic Recording (CMR)
Yes
Yes
Yes
Yes
Protection Information (T10 DIF)
—
Yes
—
Yes
Super Parity
Yes
Yes
Yes
Yes
Low Halogen
Yes
Yes
Yes
Yes
PowerChoice[superscript™] Idle Power Technology
Yes
Yes
Yes
Yes
PowerBalance[superscript™] Power/Performance Technology
Yes
Yes
Yes
Yes
Hot-Plug Support[superscript3]
Yes
Yes
Yes
Yes
Cache, Multi-segmented (MB)
256
256
256
256
Organic Solderability Preservative
Yes
Yes
Yes
Yes
RSA 3072 Firmware Verification (SD&D)
Yes
Yes
Yes
Yes
RELIABILITY/DATA INTEGRITY
Mean Time Between Failures (MTBF, hours)
2.5 Million
2.5 Million
2.5 Million
2.5 Million
Reliability Rating @ Full 24×7 Operation (AFR)
0.35%
0.35%
0.35%
0.35%
Non-recoverable Read Errors per Bits Read
1 sector per 10E15
1 sector per 10E15
1 sector per 10E15
1 sector per 10E15
Power-On Hours per Year (24×7)
8,760
8,760
8,760
8,760
512e Sector Size (Bytes per Sector)
512
512, 520, 528
512
512, 520, 528
4Kn Sector Size (Bytes per Sector)
4096
4096, 4160,4224
4096
4096, 4160,4224
Limited Warranty (years)
5
5
5
5
PERFORMANCE
Spindle Speed (RPM)
7,200
7,200
7,200
7,200
Interface Access Speed (Gb/s)
6.0, 3.0
12.0, 6.0, 3.0
6.0, 3.0
12.0, 6.0, 3.0
Max. Sustained Transfer Rate OD (MB/s, MiB/s)
285/272
285/272
285/272
285/272
Random Read/Write 4K QD16 WCD (IOPS)
168/550
168/550
168/550
168/550
Average Latency (ms)
4.16
4.16
4.16
4.16
Interface Ports
Single
Dual
Single
Dual
Rotation Vibration @ 20-1,500 Hz (rad/sec[superscript2])
12.5
12.5
12.5
12.5
Idle A (W) Average
5.4
5.8
5.4
5.8
Max Operating, Random Read/Write 4K/16Q (W)
9.4, 6.4
9.8, 7.0
9.4, 6.4
9.8, 7.0
Power Supply Requirements
+12 V and +5 V
+12 V and +5 V
+12 V and +5 V
+12 V and +5 V
ENVIRONMENTAL
Temperature, Operating (°C)
5 to 60
5 to 60
5 to 60
5 to 60
Vibration, Non-operating: 2 to 500 Hz (Grms)
2.27
2.27
2.27
2.27
Shock, Operating 2 ms (Read/Write) (Gs)
40
40
40
40
Shock, Non-operating, 2 ms (Gs)
200
200
200
200
PHYSICAL
Height (mm/in, max)[superscript4]
26.1/1.028
26.1/1.028
26.1/1.028
26.1/1.028
Width (mm/in, max)[superscript4]
101.85/4.010
101.85/4.010
101.85/4.010
101.85/4.010
Depth (mm/in, max)[superscript4]
147.0/5.787
147.0/5.787
147.0/5.787
147.0/5.787
Weight (lb/g)
670g/1.477lb
670g/1.477lb
670g/1.477lb
670g/1.477lb
Carton Unit Quantity
20
20
20
20
Cartons per Pallet/Cartons per Layer
40/8
40/8
40/8
40/8
1 FastFormat models ship in 512e format state. When switching from 512e to 4Kn by executing the FastFormat routine, all data on the drive will be deleted. Note that data must be aligned to 4K sectors to see improved performance in 4Kn format.
2 Self-Encrypting Drives (SED) and FIPS 140-3 Validated drives available through franchised authorised distributors. May require TCG-compliant host or controller support.
3 Supports Hotplug operation per Serial ATA Revision 3.3 specification
4 These base deck dimensions conform to the Small Form Factor Standard (SFF-8301) found at https://www.snia.org/sff. For connector-related dimensions, see SFF-8323.
Popis produktu
Specifications
SATA 6 Gb/s
12 Gb/s SAS
SATA 6 Gb/s
12 Gb/s SAS
Capacity
20 TB
20 TB
18 TB
18 TB
Standard Model FastFormat[superscript™] (512e/4Kn)[superscript1]
ST20000NM007D
ST20000NM002D
ST18000NM003D
ST18000NM000D
SED Model FastFormat (512e/4Kn)[superscript1,2]
ST20000NM000D
ST20000NM003D
ST18000NM004D
ST18000NM001D
SED-FIPS FastFormat (512e/4Kn)[superscript1,2]
ST20000NM005D
ST18000NM002D
FEATURES
Helium Sealed-Drive Design
Yes
Yes
Yes
Yes
Conventional Magnetic Recording (CMR)
Yes
Yes
Yes
Yes
Protection Information (T10 DIF)
—
Yes
—
Yes
Super Parity
Yes
Yes
Yes
Yes
Low Halogen
Yes
Yes
Yes
Yes
PowerChoice[superscript™] Idle Power Technology
Yes
Yes
Yes
Yes
PowerBalance[superscript™] Power/Performance Technology
Yes
Yes
Yes
Yes
Hot-Plug Support[superscript3]
Yes
Yes
Yes
Yes
Cache, Multi-segmented (MB)
256
256
256
256
Organic Solderability Preservative
Yes
Yes
Yes
Yes
RSA 3072 Firmware Verification (SD&D)
Yes
Yes
Yes
Yes
RELIABILITY/DATA INTEGRITY
Mean Time Between Failures (MTBF, hours)
2.5 Million
2.5 Million
2.5 Million
2.5 Million
Reliability Rating @ Full 24×7 Operation (AFR)
0.35%
0.35%
0.35%
0.35%
Non-recoverable Read Errors per Bits Read
1 sector per 10E15
1 sector per 10E15
1 sector per 10E15
1 sector per 10E15
Power-On Hours per Year (24×7)
8,760
8,760
8,760
8,760
512e Sector Size (Bytes per Sector)
512
512, 520, 528
512
512, 520, 528
4Kn Sector Size (Bytes per Sector)
4096
4096, 4160,4224
4096
4096, 4160,4224
Limited Warranty (years)
5
5
5
5
PERFORMANCE
Spindle Speed (RPM)
7,200
7,200
7,200
7,200
Interface Access Speed (Gb/s)
6.0, 3.0
12.0, 6.0, 3.0
6.0, 3.0
12.0, 6.0, 3.0
Max. Sustained Transfer Rate OD (MB/s, MiB/s)
285/272
285/272
285/272
285/272
Random Read/Write 4K QD16 WCD (IOPS)
168/550
168/550
168/550
168/550
Average Latency (ms)
4.16
4.16
4.16
4.16
Interface Ports
Single
Dual
Single
Dual
Rotation Vibration @ 20-1,500 Hz (rad/sec[superscript2])
12.5
12.5
12.5
12.5
Idle A (W) Average
5.4
5.8
5.4
5.8
Max Operating, Random Read/Write 4K/16Q (W)
9.4, 6.4
9.8, 7.0
9.4, 6.4
9.8, 7.0
Power Supply Requirements
+12 V and +5 V
+12 V and +5 V
+12 V and +5 V
+12 V and +5 V
ENVIRONMENTAL
Temperature, Operating (°C)
5 to 60
5 to 60
5 to 60
5 to 60
Vibration, Non-operating: 2 to 500 Hz (Grms)
2.27
2.27
2.27
2.27
Shock, Operating 2 ms (Read/Write) (Gs)
40
40
40
40
Shock, Non-operating, 2 ms (Gs)
200
200
200
200
PHYSICAL
Height (mm/in, max)[superscript4]
26.1/1.028
26.1/1.028
26.1/1.028
26.1/1.028
Width (mm/in, max)[superscript4]
101.85/4.010
101.85/4.010
101.85/4.010
101.85/4.010
Depth (mm/in, max)[superscript4]
147.0/5.787
147.0/5.787
147.0/5.787
147.0/5.787
Weight (lb/g)
670g/1.477lb
670g/1.477lb
670g/1.477lb
670g/1.477lb
Carton Unit Quantity
20
20
20
20
Cartons per Pallet/Cartons per Layer
40/8
40/8
40/8
40/8
1 FastFormat models ship in 512e format state. When switching from 512e to 4Kn by executing the FastFormat routine, all data on the drive will be deleted. Note that data must be aligned to 4K sectors to see improved performance in 4Kn format.
2 Self-Encrypting Drives (SED) and FIPS 140-3 Validated drives available through franchised authorised distributors. May require TCG-compliant host or controller support.
3 Supports Hotplug operation per Serial ATA Revision 3.3 specification
4 These base deck dimensions conform to the Small Form Factor Standard (SFF-8301) found at https://www.snia.org/sff. For connector-related dimensions, see SFF-8323.
Přes veškerou snahu zajistit co nejpřesnější popis, obrázky a technické parametry produktů nemůžeme zaručit, že uváděná data odpovídají skutečnosti. Řada výrobců si vyhrazuje právo změny některých parametrů či vlastností bez předchozího upozornění. Potřebujete-li ujištění o určitých parametrech produktu nebo v případě pochybností, kontaktujte prosím svého obchodníka. Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany.
