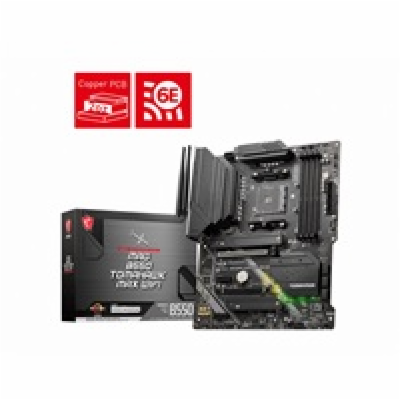

MSI MB Sc AM4 MAG B550 TOMAHAWK MAX WIFI, AMD B550, 4xDDR4, 1xDP, 1xHDMI, WI-FI
MSI MB Sc AM4 MAG B550 TOMAHAWK MAX WIFI, AMD B550, 4xDDR4, 1xDP, 1xHDMI, WI-FI
4661 Kč
3852 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: MAG B550 TOMAHAWK MAX WIFI
Kód produktu: 23350342
Výrobce: MSI
Váha: 2 kg
Záruka: 36 měsíců
Popis produktu
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
Supports DDR4 Memory, up to 5100+(OC) MHz
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
2.5G LAN with LAN Manager and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
Multi-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire™
PROCESSOR
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
CHIPSET
AMD B550 Chipset
MEMORY
4 x DDR4 memory slots, support up to 128GB* Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE 1DPC 1R max speed 5100 MHZ 1DPC 2R max speed 3866 MHZ 2DPC 1R max speed 4000 MHZ 2DPC 2R max speed 3600 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory *Please refer www.msi.com for more information on compatible memory.
EXPANSION SLOT
1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) * 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed ** 2x PCIe 3.0 x1 slots *The supported specification depends on installed processor. **When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2.
MULTI-GPU
Supports AMD CrossFire™ Technology
ONBOARD GRAPHICS
1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz*/** Support HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz * Maximum shared memory of 16 GB *Available for the processor with integrated graphics. **Graphics specifications may vary depending on the CPU installed.
STORAGE
AMD B550 Chipset
6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 * Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices *The supported specification depends on installed processor.
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
AMD B550 Chipset
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AUDIO
Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN
1x Realtek RTL8125B 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH
AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz * (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 **, FIPS, FISMA *Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. **Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
INTERNAL CONNECTORS
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x TPM module connector 1x Clear CMOS jumper
BACK PANEL PORTS
Keyboard / Mouse DisplayPort 1.4 2.5G LAN Port USB 3.2 Gen 2 10Gbps Type-A Wi-Fi / Bluetooth Antenna Audio Connectors Flash BIOS Button USB 2.0 Port HDMI 2.1 Port USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2 10Gbps Type-C Optical S/PDIF OUT
DIMENSIONS
ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
MOUNTING
9 mounting holes
OPERATING SYSTEM
Support for Windows 11 64-bit, Windows 10 64-bit
Popis produktu
MAG B550 TOMAHAWK MAX WIFISupports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
Supports DDR4 Memory, up to 5100+(OC) MHz
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
2.5G LAN with LAN Manager and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
Multi-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire™
PROCESSOR
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
CHIPSET
AMD B550 Chipset
MEMORY
4 x DDR4 memory slots, support up to 128GB* Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE 1DPC 1R max speed 5100 MHZ 1DPC 2R max speed 3866 MHZ 2DPC 1R max speed 4000 MHZ 2DPC 2R max speed 3600 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory *Please refer www.msi.com for more information on compatible memory.
EXPANSION SLOT
1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) * 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed ** 2x PCIe 3.0 x1 slots *The supported specification depends on installed processor. **When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2.
MULTI-GPU
Supports AMD CrossFire™ Technology
ONBOARD GRAPHICS
1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz*/** Support HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz * Maximum shared memory of 16 GB *Available for the processor with integrated graphics. **Graphics specifications may vary depending on the CPU installed.
STORAGE
AMD B550 Chipset
6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 * Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices *The supported specification depends on installed processor.
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
AMD B550 Chipset
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AUDIO
Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN
1x Realtek RTL8125B 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH
AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz * (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 **, FIPS, FISMA *Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. **Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
INTERNAL CONNECTORS
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x TPM module connector 1x Clear CMOS jumper
BACK PANEL PORTS
Keyboard / Mouse DisplayPort 1.4 2.5G LAN Port USB 3.2 Gen 2 10Gbps Type-A Wi-Fi / Bluetooth Antenna Audio Connectors Flash BIOS Button USB 2.0 Port HDMI 2.1 Port USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2 10Gbps Type-C Optical S/PDIF OUT
DIMENSIONS
ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
MOUNTING
9 mounting holes
OPERATING SYSTEM
Support for Windows 11 64-bit, Windows 10 64-bit
