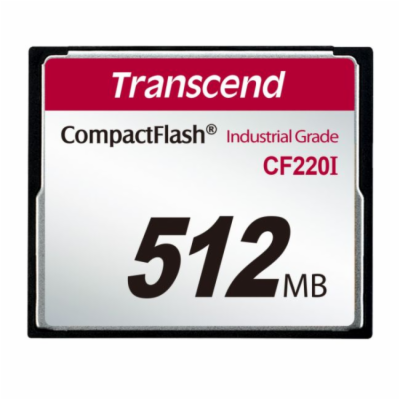

Transcend 512MB INDUSTRIAL TEMP CF220I CF CARD (SLC) Fixed disk and UDMA5
Transcend 512MB INDUSTRIAL TEMP CF220I CF CARD (SLC) Fixed disk and UDMA5
814 Kč
673 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: TS512MCF220I
Kód produktu: 8340859
Výrobce: Transcend
Váha: 0,019 kg
Záruka: 60 měsíců
Popis produktu
Firmware Features
True IDE Mode supported: UDMA0-5 (default), MDMA0-4, PIO0-6
True IDE Mode: Fixed Disk (Default)
Operation modes supported: PC Card Memory mode, PC Card IO mode, and True IDE mode
Built-in BCH ECC (Error Correction Code) functionality
Static Data Refresh
Early Retirement
Erase Count Monitoring
Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
Wear-Leveling
Security Command
Appearance
Dimensions 42.8 mm x 36.4 mm x 3.3 mm (1.69" x 1.43" x 0.13")
Pin Count 50 pin
Form Factor
Compact flash card
Storage
Flash Type
SLC NAND flash
Capacity
512 MB/
Operating Environment
Operating Voltage
3.3V±5%
5V±10%
Operating Temperature
Wide Temp.-40°C (-40°F) ~ 85°C (185°F)
Storage Temperature -55°C (-67°F) ~ 100°C (212°F)
Humidity 0% ~ 95%
Shock
1500 G, 0.5 ms, 3 axis
Vibration (Operating) 20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)
Power
Power Consumption (Max.) 0.54 watt(s)
Performance
Read Speed (Max.) up to 56 MB/s
Write Speed (Max.) up to 44 MB/s
Mean Time Between Failures (MTBF) 3,000,000 hour(s)
Note
Speed may vary due to host hardware, software, usage, and storage capacity.
Popis produktu
Ruggedized and featuring excellent temperature flexibility while delivering top performance, Transcend s CF220I Industrial Temp CF cards are specifically designed for industrial use and mission-critical applications.Firmware Features
True IDE Mode supported: UDMA0-5 (default), MDMA0-4, PIO0-6
True IDE Mode: Fixed Disk (Default)
Operation modes supported: PC Card Memory mode, PC Card IO mode, and True IDE mode
Built-in BCH ECC (Error Correction Code) functionality
Static Data Refresh
Early Retirement
Erase Count Monitoring
Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
Wear-Leveling
Security Command
Appearance
Dimensions 42.8 mm x 36.4 mm x 3.3 mm (1.69" x 1.43" x 0.13")
Pin Count 50 pin
Form Factor
Compact flash card
Storage
Flash Type
SLC NAND flash
Capacity
512 MB/
Operating Environment
Operating Voltage
3.3V±5%
5V±10%
Operating Temperature
Wide Temp.-40°C (-40°F) ~ 85°C (185°F)
Storage Temperature -55°C (-67°F) ~ 100°C (212°F)
Humidity 0% ~ 95%
Shock
1500 G, 0.5 ms, 3 axis
Vibration (Operating) 20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)
Power
Power Consumption (Max.) 0.54 watt(s)
Performance
Read Speed (Max.) up to 56 MB/s
Write Speed (Max.) up to 44 MB/s
Mean Time Between Failures (MTBF) 3,000,000 hour(s)
Note
Speed may vary due to host hardware, software, usage, and storage capacity.
