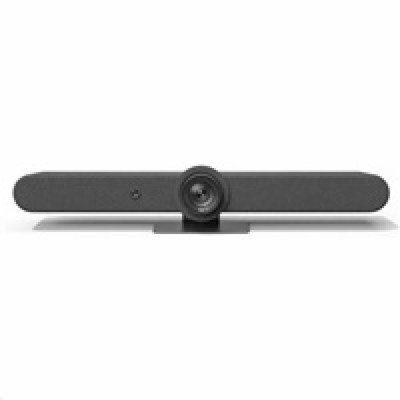

Logitech Rally Bar, videokonferenční systém, graphite/grafitová
Logitech Rally Bar, videokonferenční systém, graphite/grafitová
71877 Kč
59402 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: 960-001311
Kód produktu: 21335302
Výrobce: LOGITECH
Záruka: 2 měsíců
Popis produktu
All-in-one video bar for midsize rooms
TECHNICAL SPECIFICATION
Dimensions (H x W x D)
164 x 910 x 130.5 mm
Weight
7.08 kg
Package Contents
- Rally Bar - Power supply - AC power cord - HDMI cable - USB cable - Remote control - Lens caps for main camera and AI Viewfinder - User documentation
Warranty Information
Standard: 2-year limited hardware warranty included Extended: Additional one-year extended warranty available at the time of hardware purchase. Contact your reseller for availability.
Camera
Resolution
4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
Pan
Motorized ±25°
Tilt
Motorized ±15°
Zoom
15X HD zoom (5X optical, 3X digital available with upcoming software update)
Diagonal field of view (dFoV)
90°
Horizontal Field of View
82.1°
Vertical Field of View
52.2°
Total Room Coverage
132.1° Horizontal x 82.2° Vertical
Speakers
Drivers
2 x 70 mm
Output
90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at 1 meter
Sensitivity
90+/-3dB SPL at 1W, 1 meter
THD
1kHz < 2%
Speaker Sampling Rate
48 kHz
Microphones
Frequency response
90Hz – 16kHz
Sensitivity
>-36dBFS +/-1 dB @ 1Pa
Microphone data rate output
48 kHz
Pickup Range
4.5 m
Beamforming Elements
Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
Audio processing
AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
Noise suppression
AI filter
Add-on Mics
Supports up to 3 additional Rally Mic Pods for larger conference rooms
RightSense™ Technologies
RightLight™
Renders natural skin tones for each participant.
RightSight
Maintains persistent room awareness and detects human figures to auto-frame participants.
RightSound
Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
Interfaces
HDMI Out
2
HDMI In
1
USB 3.0
3 x Type A 1 x Type C
Network
10/100/1G Ethernet
WiFi
802.11a/b/g/n/ac (MIMO)
External Mic Input
Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
Remote Control
Bluetooth Low Energy
Power & Cables
Power supply
Auto-sensing
Operating Voltage/Power
100-240V, 19V, 4.74A
Power Supply Dimensions
127 x 51 x 30 mm
DC Cable
1.5 m
AC Cable
1 m
HDMI 1.4 Cable
2 m
USB A to USB C 3.0 Cable
2.2 m
Environmental
Operating Temperature
0 to 40°C
Storage Temperature
-40 to 70 °C
Humidity
10 to 95%
BTU/hr
57 idle, 64 in meeting
Security
Full Disk Encryption
AES-128
Data Encryption
Symmetric Keys, PKI
Device Identity
Protected by device attestation
Device Access
Authenticated using API
Key Protection
Arm TrustZone, RPMP
Certifications & Compatibility
Certifications
Zoom™ Certified, Certified for Microsoft Teams as a USB device. Contact the manufacturer for additional information on pending and granted certifications.
Compatibility
Plug and play USB connectivity with virtually any video conferencing application
Appliance mode
Supports compatible video conferencing software in appliance mode (no PC required), including Zoom Rooms Appliances. Certification pending for Microsoft Teams Rooms on Android and additional video conferencing platforms.
General Specifications
Built-in Components
6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform
Enclosure
All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
Device Management
Logitech Sync
Displays Supported
2
Display Resolution
Up to 4K
Accessories
Mounts
Wall Mount for Video Bars, TV Mount for Video Bars
Audio
Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
Connectivity
Logitech Strong USB (10 m, 25 m, 45 m)
Touch Controller
Logitech Tap
