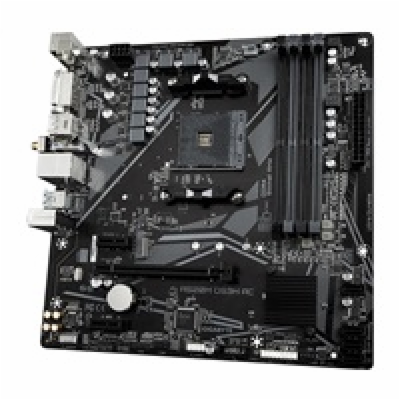

GIGABYTE MB Sc AM4 A520M DS3H AC, AMD A520, 4xDDR4, 1xDP, 1xHDMI, 1xDVI-D, WiFi, mATX
GIGABYTE MB Sc AM4 A520M DS3H AC, AMD A520, 4xDDR4, 1xDP, 1xHDMI, 1xDVI-D, WiFi, mATX
1884 Kč
1557 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: A520M DS3H AC
Kód produktu: 25528697
Výrobce: GIGABYTE
Záruka: 36 měsíců
Popis produktu
Popis produktu
GIGABYTE A520M DS3H AC AMD A520 Motherboard with Pure Digital VRM Solution, High Quality Audio, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Intel Dual Band 802.11ac WIFI, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector Onboard Intel Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management HDMI, DVI-D, Display Ports for Multiple Display RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card CPU 1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors (Please refer "CPU Support List" for more information.) Chipset 1. AMD A520 Memory 1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory 2. AMD Ryzen™ 5000 G-series / Ryzen™ 5000 Series/ 3rd Generation AMD Ryzen™ processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 4. Dual channel memory architecture 5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules 6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 7. Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor: 1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 2. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB Audio 1. Realtek Audio CODEC 2. High Definition Audio 3. 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE s website for details on configuring the audio software. LAN 1. Realtek GbE LAN chip (1 Gbps/100 Mbps) Wireless Communication module Intel Dual Band Wireless-AC 3168 (For PCB rev. 1.0, 1.2, 1.3) 1. WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band 2. BLUETOOTH 4.2 3. Support for 11ac wireless standard Intel Wireless-AC 9260 (For PCB rev. 1.1) 1. WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band 2. BLUETOOTH 5.1 3. Support for 11ac 160MHz wireless standard AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE) (For PCB rev. 1.4) 1. WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band 2. BLUETOOTH 5.0 3. Support for 11ac wireless standard (Actual data rate may vary depending on environment and equipment.) Expansion Slots CPU: 1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1. 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2) Storage Interface CPU: 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 1. 4 x SATA 6Gb/s connectors 2. Support for RAID 0, RAID 1, and RAID 10 USB CPU: 1. 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1. 2 x USB 3.2 Gen 1 ports available through the internal USB header 2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Internal I/O Connectors 1. 1 x 24-pin ATX main power connector 2. 1 x 8-pin ATX 12V power connector 3. 1 x CPU fan header 4. 2 x system fan headers 5. 1 x addressable LED strip header 6. 1 x RGB LED strip header 7. 1 x M.2 Socket 3 connector 8. 4 x SATA 6Gb/s connectors 9. 1 x front panel header 10. 1 x front panel audio header 11. 1 x USB 3.2 Gen 1 header 12. 1 x USB 2.0/1.1 header 13. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 14. 1 x serial port header 15. 1 x Clear CMOS jumper 16. 1 x Q-Flash Plus button *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. Back Panel Connectors 1. 1 x PS/2 keyboard/mouse port 2. 1 x DVI-D port 3. 1 x DisplayPort 4. 1 x HDMI port 5. 2 x SMA antenna connectors (1T1R) 6. 4 x USB 3.2 Gen 1 ports 7. 2 x USB 2.0/1.1 ports 8. 1 x RJ-45 port 9. 3 x audio jacks I/O Controller 1. iTE I/O Controller Chip H/W Monitoring 1. Voltage detection 2. Temperature detection 3. Fan speed detection 4. Overheating warning 5. Fan fail warning 6. Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1. 1 x 128 Mbit flash 2. Use of licensed AMI UEFI BIOS 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features 1. Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune RGB Fusion Smart Backup System Information Viewer 2. Support for Q-Flash Plus 3. Support for Q-Flash Bundled Software 1. Norton Internet Security (OEM version) 2. LAN bandwidth management software Operating System 1. Support for Windows 11 64-bit 2. Support for Windows 10 64-bit Form Factor 1. Micro ATX Form Factor; 24.4cm x 24.4cmPřes veškerou snahu zajistit co nejpřesnější popis, obrázky a technické parametry produktů nemůžeme zaručit, že uváděná data odpovídají skutečnosti. Řada výrobců si vyhrazuje právo změny některých parametrů či vlastností bez předchozího upozornění. Potřebujete-li ujištění o určitých parametrech produktu nebo v případě pochybností, kontaktujte prosím svého obchodníka. Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany.
