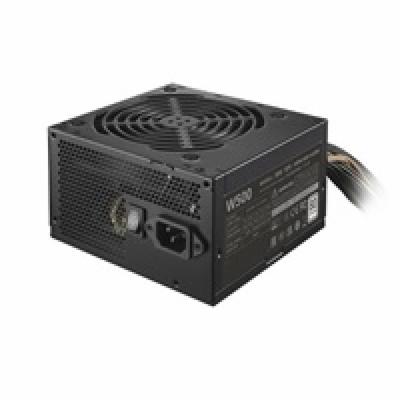

Cooler Master Elite NEX W500 230V A/EU Cable 500W MPW-5001-ACBW-BEU Cooler Master zdroj Elite NEX W500 230V A/EU Cable, 500W
Cooler Master Elite NEX W500 230V A/EU Cable 500W MPW-5001-ACBW-BEU Cooler Master zdroj Elite NEX W500 230V A/EU Cable, 500W
1353 Kč
1118 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: MPW-5001-ACBW-BEU
Kód produktu: 24025490
Výrobce: COOLER MASTER
Záruka: 3 měsíců
Popis produktu
The Elite NEX White power supply unit is a dependable choice for entry level users and system integrators. The quiet 120mm fan, Active PFC, and 3 years warranty deliver a PSU that provides function you can count on. This power supply unit has been engineered for reliability. The Elite NEX is a complete solution, offering performance and stability at an affordable price.
Active PFC + Dual Forward Topology Design : Constructed with protective measures normally found in high-end power supplies to increase safety and current stability.
High Temperature Resistance : Capable of operating at 40°C under full load allowing a longer lifespan in warmer environments.
Peak Power Tolerance : Can reliably push an additional 100W at peak power load for up to 20 seconds.
80 PLUS White EU 230V Efficiency : Maintains a higher efficiency of 85% at typical load.
Durable, Reliable, and Safe : Will perform consistently in whatever environment whether it s high altitudes or ultra humid settings.
3 Year Warranty : This unit comes with a standard limited manufacturing warranty of 3 years from the date of purchase.
TECHNICAL SPECIFICATIONS
ATX Version
ATX12V Rev. 2.41
PFC
Active PFC
Input Voltage
200 - 240V
Input Current
4A
Input Frequency
50 - 60Hz
Dimension (L x W x H)
140 x 150 x 86mm
Fan Size
120mm
Fan Bearing
Sleeve Fan
Efficiency
>= 85% @ Typical Load
ERP 2014 LOT 3
Yes
Operating Temperature
0 - 40°C
Power Good Signal
100 - 500 ms
Hold Up Time
>= 10ms at 100% Load
MTBF
>100,000 hours
Protections
OVP / OPP / SCP / UVP / OTP / Inrush Protection
Regulatory
TUV,cTUVus,CE,FCC,CCC,EAC,UKCA
ATX 24-pin Connnectors
x1 = 1x (550mm)
EPS 4+4 pin Connnectors
x1 = 1x (550mm)
SATA Connectors
x2 = 1x (400+150mm); x3 = 1x (400+150+150mm)
Peripheral 4-pin Connectors
x3 = 1x (400+150+150mm)
PCI-E 6+2 pin Connectors
x2 = 1x (500+120mm)
Popis produktu
ELITE NEX 230VThe Elite NEX White power supply unit is a dependable choice for entry level users and system integrators. The quiet 120mm fan, Active PFC, and 3 years warranty deliver a PSU that provides function you can count on. This power supply unit has been engineered for reliability. The Elite NEX is a complete solution, offering performance and stability at an affordable price.
Active PFC + Dual Forward Topology Design : Constructed with protective measures normally found in high-end power supplies to increase safety and current stability.
High Temperature Resistance : Capable of operating at 40°C under full load allowing a longer lifespan in warmer environments.
Peak Power Tolerance : Can reliably push an additional 100W at peak power load for up to 20 seconds.
80 PLUS White EU 230V Efficiency : Maintains a higher efficiency of 85% at typical load.
Durable, Reliable, and Safe : Will perform consistently in whatever environment whether it s high altitudes or ultra humid settings.
3 Year Warranty : This unit comes with a standard limited manufacturing warranty of 3 years from the date of purchase.
TECHNICAL SPECIFICATIONS
ATX Version
ATX12V Rev. 2.41
PFC
Active PFC
Input Voltage
200 - 240V
Input Current
4A
Input Frequency
50 - 60Hz
Dimension (L x W x H)
140 x 150 x 86mm
Fan Size
120mm
Fan Bearing
Sleeve Fan
Efficiency
>= 85% @ Typical Load
ERP 2014 LOT 3
Yes
Operating Temperature
0 - 40°C
Power Good Signal
100 - 500 ms
Hold Up Time
>= 10ms at 100% Load
MTBF
>100,000 hours
Protections
OVP / OPP / SCP / UVP / OTP / Inrush Protection
Regulatory
TUV,cTUVus,CE,FCC,CCC,EAC,UKCA
ATX 24-pin Connnectors
x1 = 1x (550mm)
EPS 4+4 pin Connnectors
x1 = 1x (550mm)
SATA Connectors
x2 = 1x (400+150mm); x3 = 1x (400+150+150mm)
Peripheral 4-pin Connectors
x3 = 1x (400+150+150mm)
PCI-E 6+2 pin Connectors
x2 = 1x (500+120mm)
