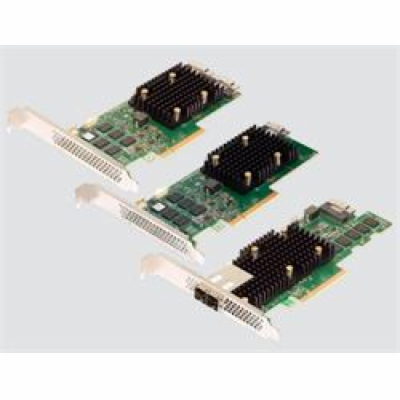

Broadcom LSI MegaRAID SAS 9560-8i, 4GB, 12Gb/s, NVMe/SAS/SATA, 1x SFF-8654 x8, RAID 0-60, PCIe 4.0 x8
Broadcom LSI MegaRAID SAS 9560-8i, 4GB, 12Gb/s, NVMe/SAS/SATA, 1x SFF-8654 x8, RAID 0-60, PCIe 4.0 x8
22670 Kč
18736 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: 05-50077-01
Kód produktu: 20056177
Výrobce: Broadcom
Záruka: 36 měsíců
Popis produktu
Ensure data protection for performance-hungry applications in high-end servers utilizing PCIe 4.0 and a mix of internal SAS, SATA or NVMe storage devices
The MegaRAID 9500 series is the industry’s first PCIe Gen 4.0 RAID adapter family, offering PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9560-8i adapter, based on the SAS3908 high-port count PCIe 4.0 x8 RAID-on-Chip (RoC), delivers twice the performance of previous generations.
The 9560-8i is compatible with existing PCIe SFF-8639 Module (U.2) backplanes, allowing users to boost performance for today’s ever increasing bandwidth environments. Coupled with two industry initiatives expanding the deployment of Tri-Mode SerDes technology, which enables the operation of NVMe, SAS or SATA devices in a single drive bay, the 9560-8i is instrumental in getting the most performance and flexibility out of U.3 backplanes:
SFF-TA-10001 Specification (U.3), which defines a common bay type for SAS, SATA and NVMe
Universal Backplane Management (UBM), which defines a common backplane control and management framework
With Tri-Mode SerDes technology, the adapter negotiates between speeds and protocols to seamlessly work with any of the three types of storage devices. Tri-Mode support provides a non-disruptive way to evolve existing data center infrastructure.
Key Features Include:
Connect up to 240 SAS/SATA devices or 32 NVMe devices per controller
Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
Form-factor friendly cable exit
Support critical, high-bandwidth applications with PCIe 4.0 connectivity
Balance protection and performance for critical applications with RAID 0, 00, 1, 5, 6, 10, 50 and 60
JBOD mode with RAID 0, 1, 10 and JBOD for SDS environments
Add more protection and peace of mind with CacheVault flash cache protection
Specification / Value
Lifecycle: Active
Distrib. Inventory: No
Generation: 12 Gb/s
Management Software: LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
Cache Protection: CacheVault CVPM05 - optional
Physical Dimensions: Low profile 6.127” x 2.712”
Host Bus Type: x8 lane PCI Express 4.0
Cache Memory: 4GB
Internal Ports: 8
Data Transfer Rates: 12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant
Devices Supported: SAS/SATA: 240, NVMe: 24
Internal Connectors: 1 x8 SFF-8654 (SlimSAS)
MTBF: >3,000,000 hours at 40° C
Operating Temperature: 0°C to 55°C
OS: Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Regulatory Certifications: Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Warranty: 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
I/O Processor / SAS Controller: SAS3908 12Gb/s SAS Tri-Mode RAID-on-Chip (ROC)
Popis produktu
MegaRAID 9560-8iEnsure data protection for performance-hungry applications in high-end servers utilizing PCIe 4.0 and a mix of internal SAS, SATA or NVMe storage devices
The MegaRAID 9500 series is the industry’s first PCIe Gen 4.0 RAID adapter family, offering PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9560-8i adapter, based on the SAS3908 high-port count PCIe 4.0 x8 RAID-on-Chip (RoC), delivers twice the performance of previous generations.
The 9560-8i is compatible with existing PCIe SFF-8639 Module (U.2) backplanes, allowing users to boost performance for today’s ever increasing bandwidth environments. Coupled with two industry initiatives expanding the deployment of Tri-Mode SerDes technology, which enables the operation of NVMe, SAS or SATA devices in a single drive bay, the 9560-8i is instrumental in getting the most performance and flexibility out of U.3 backplanes:
SFF-TA-10001 Specification (U.3), which defines a common bay type for SAS, SATA and NVMe
Universal Backplane Management (UBM), which defines a common backplane control and management framework
With Tri-Mode SerDes technology, the adapter negotiates between speeds and protocols to seamlessly work with any of the three types of storage devices. Tri-Mode support provides a non-disruptive way to evolve existing data center infrastructure.
Key Features Include:
Connect up to 240 SAS/SATA devices or 32 NVMe devices per controller
Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
Form-factor friendly cable exit
Support critical, high-bandwidth applications with PCIe 4.0 connectivity
Balance protection and performance for critical applications with RAID 0, 00, 1, 5, 6, 10, 50 and 60
JBOD mode with RAID 0, 1, 10 and JBOD for SDS environments
Add more protection and peace of mind with CacheVault flash cache protection
Specification / Value
Lifecycle: Active
Distrib. Inventory: No
Generation: 12 Gb/s
Management Software: LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
Cache Protection: CacheVault CVPM05 - optional
Physical Dimensions: Low profile 6.127” x 2.712”
Host Bus Type: x8 lane PCI Express 4.0
Cache Memory: 4GB
Internal Ports: 8
Data Transfer Rates: 12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant
Devices Supported: SAS/SATA: 240, NVMe: 24
Internal Connectors: 1 x8 SFF-8654 (SlimSAS)
MTBF: >3,000,000 hours at 40° C
Operating Temperature: 0°C to 55°C
OS: Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Regulatory Certifications: Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Warranty: 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
I/O Processor / SAS Controller: SAS3908 12Gb/s SAS Tri-Mode RAID-on-Chip (ROC)
