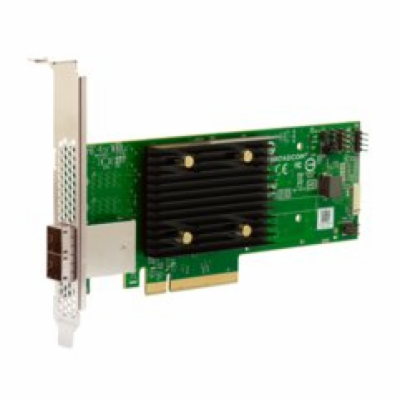

Broadcom LSI HBA 9500-8e, 12Gb/s, NVMe/SAS/SATA, 2x SFF-8644 x4, PCIe 4.0 x8
Broadcom LSI HBA 9500-8e, 12Gb/s, NVMe/SAS/SATA, 2x SFF-8644 x4, PCIe 4.0 x8
18101 Kč
14960 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: 05-50075-01
Kód produktu: 20090956
Výrobce: Broadcom
Záruka: 36 měsíců
Popis produktu
PCIe Gen 4.0 HBA enables customers to integrate into U.3 backplanes utilizing UBM for maximum flexibility and configuration options
The 9500-8e Tri-Mode, PCIe Gen 4.0 HBA with eight external ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility. The HBA features the SAS3808 x8, Gen 4.0 I/O Controller (IOC), making it part of the industry's first HBA family to offer both PCIe Gen 4.0 host and storage interfaces.
With increased bandwidth and IOPS performance compared to previous generations, the 9500-8e adapter delivers the performance and scalability needed by critical applications.
Connects up to 1024 SAS/SATA devices or 32 NVMe devices
Provides maximum connectivity and performance for high-end servers and applications
Support critical applications with the bandwidth of PCIe 4.0 connectivity
Universal Bay Management (UBM) Ready
Specification / Value
Lifecycle: Active
Typical Power: 6.12W
Host Bus Type: x8 lane PCI Express 4.0
Physical Dimensions: Low profile 6.600" x 2.712"
Devices Supported: SAS/SATA: 1024, NVMe: 32
External Connectors: 2 x4 SFF-8644 (ext HD)
Internal Ports: 8
Operating Temperature: 0°C to 55°C
OS Support: Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
I/O Controller: SAS3808
MTBF: > 5,000,000 hours at 40° C
Operating Humidity :20% to 80% Non-condensing
Brackets: Full height and low profile
Regulatory Certifications: Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Warranty: 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
Management Software :LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
Popis produktu
HBA 9500-8e Tri-Mode Storage AdapterPCIe Gen 4.0 HBA enables customers to integrate into U.3 backplanes utilizing UBM for maximum flexibility and configuration options
The 9500-8e Tri-Mode, PCIe Gen 4.0 HBA with eight external ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility. The HBA features the SAS3808 x8, Gen 4.0 I/O Controller (IOC), making it part of the industry's first HBA family to offer both PCIe Gen 4.0 host and storage interfaces.
With increased bandwidth and IOPS performance compared to previous generations, the 9500-8e adapter delivers the performance and scalability needed by critical applications.
Connects up to 1024 SAS/SATA devices or 32 NVMe devices
Provides maximum connectivity and performance for high-end servers and applications
Support critical applications with the bandwidth of PCIe 4.0 connectivity
Universal Bay Management (UBM) Ready
Specification / Value
Lifecycle: Active
Typical Power: 6.12W
Host Bus Type: x8 lane PCI Express 4.0
Physical Dimensions: Low profile 6.600" x 2.712"
Devices Supported: SAS/SATA: 1024, NVMe: 32
External Connectors: 2 x4 SFF-8644 (ext HD)
Internal Ports: 8
Operating Temperature: 0°C to 55°C
OS Support: Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
I/O Controller: SAS3808
MTBF: > 5,000,000 hours at 40° C
Operating Humidity :20% to 80% Non-condensing
Brackets: Full height and low profile
Regulatory Certifications: Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Warranty: 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
Management Software :LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
