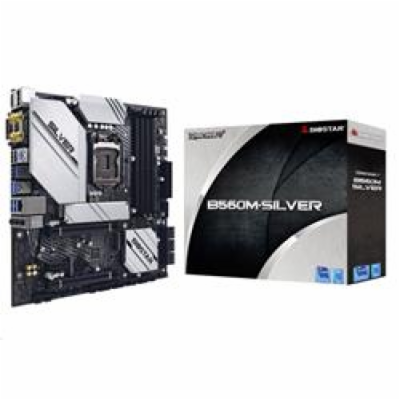

BIOSTAR B560M-SILVER, LGA 1200, Intel B560, 4xDDR4, HDMI/DVI-D/DP, 2xPCI-E x16, 1xPCI-E x1, 6xSATA, 2
BIOSTAR B560M-SILVER, LGA 1200, Intel B560, 4xDDR4, HDMI/DVI-D/DP, 2xPCI-E x16, 1xPCI-E x1, 6xSATA, 2
4213 Kč
3482 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: B560MSILVER
Kód produktu: 24895040
Výrobce: Biostar
Záruka: 24 měsíců
Popis produktu
Main Board Desktop - Processor
Chipset:
Intel B560
Supports Central Processor Unit:
Intel 10th Gen Processors
Intel 11th Gen Processors
CPU Socket Standard:
Socket 1200
CPU Maximum Quantity Supports:
1
Main Board Desktop - Memory
Memory Type:
DDR4 SDRAM
Memory Form Factor:
DIMM 288-pin
Memory Speed:
2133MHz(PC4-17000)
2400MHz(PC4-19200)
2667MHz(PC4-21300)
2800MHz(PC4-22400)
2933MHz(PC4-23400)
3200MHz(PC4-25600)
Maximum Installable System Memory Storage Capacity:
128 GB
Memory Slot Total Quantity:
4
Provides Error Checking Method:
non-ECC
Memory Features:
XMP
Controller
Integrated:
Storage Controller:
SATA III-600 (6)
Storage Controller:
PCI Express 4.0 x4 (1 x M.2 (Key M))
Storage Controller:
PCIe 3.0 x4/SATA (1 x M.2 (Key M))
Support:
Wi-Fi Controller:
1 x M.2 (Key E)
Main Board Desktop - Audio Output
Audio Integrated:
yes
Device Location:
Integrated
Audio Chipset:
Realtek ALC1220
Audio Output Mode:
7.1 Channel Surround
Compliant Audio Standards:
High Definition Audio
Main Board Desktop - Networking Specifications
LAN Integrated:
yes
LAN Chipset:
Realtek RTL8125B
Data Link Protocol Supports:
Gigabit Ethernet/Fast Ethernet/Ethernet
2.5 Gbps
Slot Provided
PCI Express 4.0 x16:
1
PCI Express 3.0 x16:
1
PCI Express 3.0 x1:
1
Interface Provided
Wi-Fi Antenna:
2
PS/2:
1
HDMI:
1 (HDMI (Type A))
DVI:
1 (DVI-D)
DisplayPort:
1
LAN:
1 (RJ-45)
Audio Interface:
3 (3.5-mm minijack)
USB 3.2 Gen 2 x2:
1 (USB 3.2 (type C))
USB 3.2 Gen 1:
3 (USB 3.2 (type A))
USB 2.0:
2 (USB 2.0 (type A))
USB 3.2 Gen 2:
2 (USB 3.2 (type A))
Main Board Desktop - Mainboard Features
Hardware Monitoring:
Chassis Fan Tachometer
CPU Fan Tachometer
CPU Temperature
System Temperature
System Voltage
CPU Fan multi-speed control
Power Connectors Type:
24+8 pin
Mainboard Features:
Intel Optane Memory Ready
Main Board Desktop - Software
Supported Operating System:
Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit
Miscellaneous
Cable Included:
4 x SATA Data Cables
Included Accessories:
I/O Shield
Quick Start Guide
DVD
Main Board Desktop - Dimensions&Weight
Form Factor:
Micro ATX
Height (mm):
244 mm
Width (mm):
244 mm
Popis produktu
Main Board Desktop - Processor
Chipset:
Intel B560
Supports Central Processor Unit:
Intel 10th Gen Processors
Intel 11th Gen Processors
CPU Socket Standard:
Socket 1200
CPU Maximum Quantity Supports:
1
Main Board Desktop - Memory
Memory Type:
DDR4 SDRAM
Memory Form Factor:
DIMM 288-pin
Memory Speed:
2133MHz(PC4-17000)
2400MHz(PC4-19200)
2667MHz(PC4-21300)
2800MHz(PC4-22400)
2933MHz(PC4-23400)
3200MHz(PC4-25600)
Maximum Installable System Memory Storage Capacity:
128 GB
Memory Slot Total Quantity:
4
Provides Error Checking Method:
non-ECC
Memory Features:
XMP
Controller
Integrated:
Storage Controller:
SATA III-600 (6)
Storage Controller:
PCI Express 4.0 x4 (1 x M.2 (Key M))
Storage Controller:
PCIe 3.0 x4/SATA (1 x M.2 (Key M))
Support:
Wi-Fi Controller:
1 x M.2 (Key E)
Main Board Desktop - Audio Output
Audio Integrated:
yes
Device Location:
Integrated
Audio Chipset:
Realtek ALC1220
Audio Output Mode:
7.1 Channel Surround
Compliant Audio Standards:
High Definition Audio
Main Board Desktop - Networking Specifications
LAN Integrated:
yes
LAN Chipset:
Realtek RTL8125B
Data Link Protocol Supports:
Gigabit Ethernet/Fast Ethernet/Ethernet
2.5 Gbps
Slot Provided
PCI Express 4.0 x16:
1
PCI Express 3.0 x16:
1
PCI Express 3.0 x1:
1
Interface Provided
Wi-Fi Antenna:
2
PS/2:
1
HDMI:
1 (HDMI (Type A))
DVI:
1 (DVI-D)
DisplayPort:
1
LAN:
1 (RJ-45)
Audio Interface:
3 (3.5-mm minijack)
USB 3.2 Gen 2 x2:
1 (USB 3.2 (type C))
USB 3.2 Gen 1:
3 (USB 3.2 (type A))
USB 2.0:
2 (USB 2.0 (type A))
USB 3.2 Gen 2:
2 (USB 3.2 (type A))
Main Board Desktop - Mainboard Features
Hardware Monitoring:
Chassis Fan Tachometer
CPU Fan Tachometer
CPU Temperature
System Temperature
System Voltage
CPU Fan multi-speed control
Power Connectors Type:
24+8 pin
Mainboard Features:
Intel Optane Memory Ready
Main Board Desktop - Software
Supported Operating System:
Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit
Miscellaneous
Cable Included:
4 x SATA Data Cables
Included Accessories:
I/O Shield
Quick Start Guide
DVD
Main Board Desktop - Dimensions&Weight
Form Factor:
Micro ATX
Height (mm):
244 mm
Width (mm):
244 mm
