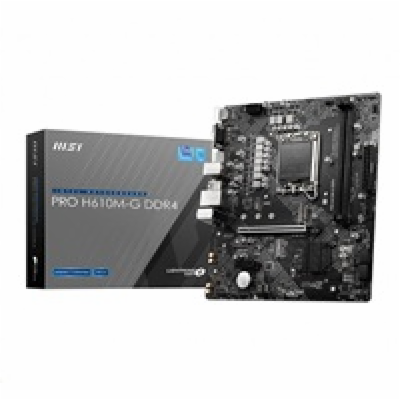

BAZAR - MSI MB Sc LGA1700 PRO H610M-G DDR4, Intel H610, 2xDDR4, 1xDP, 1xHDMI, 1xVGA, mATX - Po opravě (Bez příšlušenství
BAZAR - MSI MB Sc LGA1700 PRO H610M-G DDR4, Intel H610, 2xDDR4, 1xDP, 1xHDMI, 1xVGA, mATX - Po opravě (Bez příšlušenství
1619 Kč
1338 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: PRO H610M-G DDR4//BAZAR
Kód produktu: 24602820
Výrobce: MSI
Záruka: 12 měsíců
Popis produktu
Supports 12th Gen Intel Core™, Pentium Gold and Celeron processors for LGA 1700 socket
Supports DDR4 Memory, up to 3200(MAX) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
PROCESSOR
Supports 12th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors* Processor socket LGA1700 *Please go to www.msi.com to get the newest support status as new processors are released.
CHIPSET
Intel H610 Chipset
MEMORY
2x DDR4 memory slots, support up to 64GB* Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory *Please refer to www.msi.com for more information on compatible memory.
EXPANSION SLOT
1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)
ONBOARD GRAPHICS
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz */** 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz* x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz */** *Available only on processors featuring integrated graphics. **Graphics specifications may vary depending on the CPU installed.
SATA PORTS
4x SATA 6Gb/s ports* * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
M.2 SSD SLOT
1x M.2 slot (Key M, from chipset)* Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core™ processors *SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot
USB
Intel H610 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
AUDIO
Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio
LAN
1x Intel I219V 1Gbps LAN controller
POWER CONNECTORS
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector
FAN CONNECTORS
1x 4-pin CPU fan connector 1x 4-pin system fan connector
SYSTEM CONNECTORS
1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector
JUMPERS
1x Clear CMOS jumper
LED FEATURES
1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED
BACK PANEL PORTS
HDMI VGA DisplayPort Keyboard/Mouse USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0 MSI H510M-A PRO back panel ports
DIMENSIONS
mATX Form Factor 9.29 x 7.95 in. (23.6 cm x 20.2 cm)
OPERATING SYSTEM
Support for Windows 11 64-bit
Popis produktu
PRO H610M-G DDR4Supports 12th Gen Intel Core™, Pentium Gold and Celeron processors for LGA 1700 socket
Supports DDR4 Memory, up to 3200(MAX) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
PROCESSOR
Supports 12th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors* Processor socket LGA1700 *Please go to www.msi.com to get the newest support status as new processors are released.
CHIPSET
Intel H610 Chipset
MEMORY
2x DDR4 memory slots, support up to 64GB* Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory *Please refer to www.msi.com for more information on compatible memory.
EXPANSION SLOT
1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)
ONBOARD GRAPHICS
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz */** 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz* x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz */** *Available only on processors featuring integrated graphics. **Graphics specifications may vary depending on the CPU installed.
SATA PORTS
4x SATA 6Gb/s ports* * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
M.2 SSD SLOT
1x M.2 slot (Key M, from chipset)* Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core™ processors *SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot
USB
Intel H610 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
AUDIO
Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio
LAN
1x Intel I219V 1Gbps LAN controller
POWER CONNECTORS
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector
FAN CONNECTORS
1x 4-pin CPU fan connector 1x 4-pin system fan connector
SYSTEM CONNECTORS
1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector
JUMPERS
1x Clear CMOS jumper
LED FEATURES
1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED
BACK PANEL PORTS
HDMI VGA DisplayPort Keyboard/Mouse USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0 MSI H510M-A PRO back panel ports
DIMENSIONS
mATX Form Factor 9.29 x 7.95 in. (23.6 cm x 20.2 cm)
OPERATING SYSTEM
Support for Windows 11 64-bit
