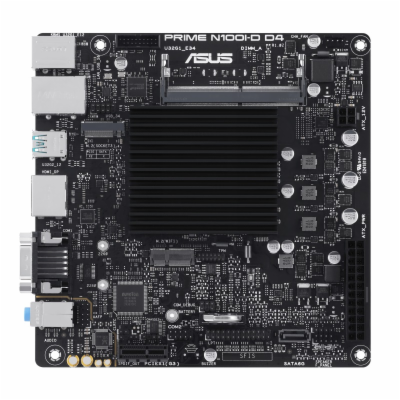

Asus PRIME N100I-D D4-CSM 90MB1F70-M0EAYC ASUS MB PRIME N100I-D D4-CSM, Intel® Processor N100, 1xDDR4, 1xHDMI, 1xDP, 1xVGA, Mini-ITX
Asus PRIME N100I-D D4-CSM 90MB1F70-M0EAYC ASUS MB PRIME N100I-D D4-CSM, Intel® Processor N100, 1xDDR4, 1xHDMI, 1xDP, 1xVGA, Mini-ITX
2511 Kč
2075 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: 90MB1F70-M0EAYC
Kód produktu: 24202540
Výrobce: Asus Czech Service s.r.o.
Váha: 0,696 kg
Záruka: 36 měsíců
Popis produktu
Popis produktu
ASUS PRIME N100I-D D4-CSM Low-power, fan-less motherboard for Intel Processor N100, with PCIe 3.0, DisplayPort/HDMI™/VGA, USB 3.2 Gen 2 port, M.2 WIFI slot, SATA 6 Gbps, LPT header, COM Port, COM Header, Q-LED Core Ultrafast Connectivity: PCIe 3.0 x1 slot, 16Gbps M.2 support, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 and 1Gb Ethernet Better serviceability: COM debug header to facilitate building and support processes ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection CPU Onboard Intel Processor N100 Supports Intel Turbo Boost Technology 2.0 Memory 1 x SO-DIMM, Max. 16GB, DDR4 3200/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* * We recommend that you use 16GB or less memory module. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ Graphics 1 x DisplayPort** 1 x VGA port 1 x HDMITM port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. **Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMITM 2.1. Expansion Slots 1 x PCIe 3.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 1 x M.2 slot and 1 x SATA 6Gb/s port 1 x M.2 Socket 3 with M key, type 2260/2280 (supports PCIe 3.0 x 2 mode) 1 x SATA 6Gb/s port Ethernet 1 x Realtek 1Gb Ethernet ASUS LANGuard Wireless & Bluetooth M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. USB Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)* 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports* 1 x USB 2.0 header supports 2 additional USB 2.0 ports * U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth. Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-Recording, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMITM Port 1 x COM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and cooling related 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 1 x SATA 6Gb/s port USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x Chassis Intrude header 1 x LPT header 1 x S/PDIF out header 1 x SPI TPM header (14-1pin) 1 x Speaker Header 1 x System Panel connector Special Features Proven Quality - ESD Guards - LANGuard - Overvoltage Protection - Stainless-Steel Back I/O ASUS Q-Design - Q-LED Core ASUS Thermal Solution - CPU heatsink design Software Features ASUS Exclusive Software ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x Screw package for M.2 SSD 1 x Screw package for M.2 Key E Documentation 1 x User guide 1 x ACC Express Activation Key Card Operating System Windows 11(Version 22 H2 and later), Windows 10 64-bit Form Factor Mini-ITX Form Factor 17cm x 17cmPřes veškerou snahu zajistit co nejpřesnější popis, obrázky a technické parametry produktů nemůžeme zaručit, že uváděná data odpovídají skutečnosti. Řada výrobců si vyhrazuje právo změny některých parametrů či vlastností bez předchozího upozornění. Potřebujete-li ujištění o určitých parametrech produktu nebo v případě pochybností, kontaktujte prosím svého obchodníka. Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany.
