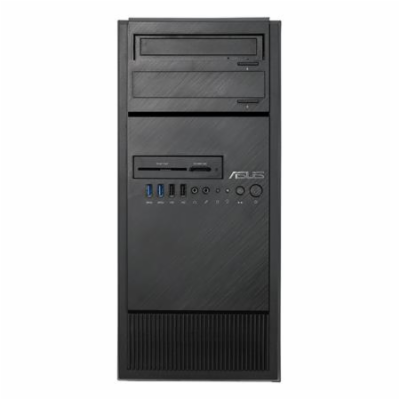

Asus E500 G5 90SF00Q1-M00410 ASUS "E500 G5/DVR/CEEUK/EN/WOC/WOM/WOS/WOR/WOIIntel 1 x Socket LGA1151, C246, 4DIMM, 6PCIe, 2M.2, 3x3.5""+1x2.5"" Inter
Asus E500 G5 90SF00Q1-M00410 ASUS "E500 G5/DVR/CEEUK/EN/WOC/WOM/WOS/WOR/WOIIntel 1 x Socket LGA1151, C246, 4DIMM, 6PCIe, 2M.2, 3x3.5""+1x2.5"" Inter
20751 Kč
17150 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: 90SF00Q1-M00410
Kód produktu: 18274450
Výrobce: Asus Czech Service s.r.o.
Váha: 10,32 kg
Záruka: 36 měsíců
Popis produktu
E500 G5/DVR/CEEUK/EN/WOC/WOM/WOS/WOR/WOI
Intel 1 x Socket LGA1151, C246, 4DIMM, 6PCIe, 2M.2, 3x3.5"+1x2.5" Internal Storbay, 2x5.25"mediabay, i210AT+i219LM LAN, 1x500W 80+ Gold PSU, Multi-VGA output support: DVI-D/HDMI/DisplayPort/VGA
Operating System
Windows 10 Pro for Workstations
Windows 10 Pro - ASUS recommends Windows 10 Pro.
Windows 10 Home - ASUS recommends Windows 10 Pro.
OS may vary by model. Please check with your ASUS vendor prior to purchase.
Processor / System Bus
1 x Socket LGA1151
Intel ® Xeon ® processor E-2100 family
Intel ® Pentium™ processors
Intel ® Celeron™ processors
Intel ® Core™ i7/i5/i3 processors
Core Logic
Intel® C246 Chipset
Memory
Total Slots : 4 (2-channel)
Capacity : Maximum up to 64GB UDIMM
Memory Type :
Dual Channel DDR4 2666/2400 /2133 UDIMM non ECC and with ECC
Memory Size :
16GB, 8GB
* Refer to support page for more information
Expansion Slots
Total: 6
PCIEX1_1: PCI-E x1 slot, x1 Gen3 Link, from PCH
PCIEX16_1: PCI-E x16 slot, x16/ x8 Gen3 Link, from CPU
PCIEX16_2: PCI-E x16 slot, x8 Gen3 Link, switched from PCIEX16_1, from CPU
PCIEX1_2: PCI-E x1 slot, x1 Gen3 Link, from PCH
PCIEX16_3: PCI-E x16 slot, x4 Gen3 Link, from PCH
PCIEX16_4: PCI-E x16 slot, x4 Gen3 Link, from PCH, shared with 4 SATA
Storage
SATA Controller :
Intel® C246 Chipset
8 x SATA3 6Gb/s ports
Intel® Rapid Storage Technology(RST) (For Linux/Windows)
(Support Software RAID )
SATA Controller :
1 x M.2 connector(2242/2260/2280/22110) PCIe mode
1 x M.2 connector (2280/2260/2242)
Drive Bays
1x internal 2.5” drive bay
3x internal 3.5” drive bay (or 3x internal 2.5” drive bay: optional cage required)
2x internal 2.5”/3.5” drive bay (optional cage required)
Auxiliary Storage FDD/CD/DVD
2 x 5.25" media bays
(Options: No ODD/DVD-RW)
Networking
1 x Intel® I210AT
1 x i219-LM
Front I/O Ports
2 x USB 3.1 Gen1
2 x USB 2.0
1 x Headphone port
1 x Microphone port
Rear I/O Ports
2 x USB 3.1 Gen2 ports (1 port at Type A, 1 port at Type C)
4 x USB 3.1 Gen1 ports
1 x HDMI
1 x DisplayPort
1 x DVI-D
1 x VGA
2 x RJ-45 ports
1 x 8-channel Audio I/O ports (5 + 1 Audio jacks)
OS Support
Windows® 10 64-bit
*Subject to change without any notice
Please find the latest OS support from https://www.asus.com/event/Server/OS_support_list/OS.html
Regulatory Compliance
BSMI, CCC, CE, FCC(Class B)
Dimensions
423mm x 190mm x 435mm
Form Factor
Tower
Weight
Net Weight : 12.65 KG
Gross Weight : 14.51 KG
Power Supply
300W 80PLUS Single Power Supply, Bronze
(100-127/220-240V, 6/3A, 60-50Hz, Class I)
500W 80PLUS Single Power Supply, Gold
(100-240V, 7-3.5A, 50/60Hz, Class I)
700W 80PLUS Single Power Supply, Gold
(100-240V, 10-5A, 50/60Hz, Class I)
Environment
Operation temperature: 10? ~ 35?
Non operation temperature: -40? ~ 70?
Non operation humidity: 20% ~ 90% ( Non condensing)
Accessory Box
1 x E500 G5 Support CD
1 x Windows 10 Professional 32/64bit Recovery DVD (for OS bundled SKU)
1 x AC Power Cable
1 x COM port Cable
1 x VGA Support CD
Optional Items
Smart Card Reader
Optional Anti-Virus CD pack
OS
DVD-RW/DVD-ROM
Popis produktu
E500 G5/DVR/CEEUK/EN/WOC/WOM/WOS/WOR/WOI
Intel 1 x Socket LGA1151, C246, 4DIMM, 6PCIe, 2M.2, 3x3.5"+1x2.5" Internal Storbay, 2x5.25"mediabay, i210AT+i219LM LAN, 1x500W 80+ Gold PSU, Multi-VGA output support: DVI-D/HDMI/DisplayPort/VGA
Operating System
Windows 10 Pro for Workstations
Windows 10 Pro - ASUS recommends Windows 10 Pro.
Windows 10 Home - ASUS recommends Windows 10 Pro.
OS may vary by model. Please check with your ASUS vendor prior to purchase.
Processor / System Bus
1 x Socket LGA1151
Intel ® Xeon ® processor E-2100 family
Intel ® Pentium™ processors
Intel ® Celeron™ processors
Intel ® Core™ i7/i5/i3 processors
Core Logic
Intel® C246 Chipset
Memory
Total Slots : 4 (2-channel)
Capacity : Maximum up to 64GB UDIMM
Memory Type :
Dual Channel DDR4 2666/2400 /2133 UDIMM non ECC and with ECC
Memory Size :
16GB, 8GB
* Refer to support page for more information
Expansion Slots
Total: 6
PCIEX1_1: PCI-E x1 slot, x1 Gen3 Link, from PCH
PCIEX16_1: PCI-E x16 slot, x16/ x8 Gen3 Link, from CPU
PCIEX16_2: PCI-E x16 slot, x8 Gen3 Link, switched from PCIEX16_1, from CPU
PCIEX1_2: PCI-E x1 slot, x1 Gen3 Link, from PCH
PCIEX16_3: PCI-E x16 slot, x4 Gen3 Link, from PCH
PCIEX16_4: PCI-E x16 slot, x4 Gen3 Link, from PCH, shared with 4 SATA
Storage
SATA Controller :
Intel® C246 Chipset
8 x SATA3 6Gb/s ports
Intel® Rapid Storage Technology(RST) (For Linux/Windows)
(Support Software RAID )
SATA Controller :
1 x M.2 connector(2242/2260/2280/22110) PCIe mode
1 x M.2 connector (2280/2260/2242)
Drive Bays
1x internal 2.5” drive bay
3x internal 3.5” drive bay (or 3x internal 2.5” drive bay: optional cage required)
2x internal 2.5”/3.5” drive bay (optional cage required)
Auxiliary Storage FDD/CD/DVD
2 x 5.25" media bays
(Options: No ODD/DVD-RW)
Networking
1 x Intel® I210AT
1 x i219-LM
Front I/O Ports
2 x USB 3.1 Gen1
2 x USB 2.0
1 x Headphone port
1 x Microphone port
Rear I/O Ports
2 x USB 3.1 Gen2 ports (1 port at Type A, 1 port at Type C)
4 x USB 3.1 Gen1 ports
1 x HDMI
1 x DisplayPort
1 x DVI-D
1 x VGA
2 x RJ-45 ports
1 x 8-channel Audio I/O ports (5 + 1 Audio jacks)
OS Support
Windows® 10 64-bit
*Subject to change without any notice
Please find the latest OS support from https://www.asus.com/event/Server/OS_support_list/OS.html
Regulatory Compliance
BSMI, CCC, CE, FCC(Class B)
Dimensions
423mm x 190mm x 435mm
Form Factor
Tower
Weight
Net Weight : 12.65 KG
Gross Weight : 14.51 KG
Power Supply
300W 80PLUS Single Power Supply, Bronze
(100-127/220-240V, 6/3A, 60-50Hz, Class I)
500W 80PLUS Single Power Supply, Gold
(100-240V, 7-3.5A, 50/60Hz, Class I)
700W 80PLUS Single Power Supply, Gold
(100-240V, 10-5A, 50/60Hz, Class I)
Environment
Operation temperature: 10? ~ 35?
Non operation temperature: -40? ~ 70?
Non operation humidity: 20% ~ 90% ( Non condensing)
Accessory Box
1 x E500 G5 Support CD
1 x Windows 10 Professional 32/64bit Recovery DVD (for OS bundled SKU)
1 x AC Power Cable
1 x COM port Cable
1 x VGA Support CD
Optional Items
Smart Card Reader
Optional Anti-Virus CD pack
OS
DVD-RW/DVD-ROM
Přes veškerou snahu zajistit co nejpřesnější popis, obrázky a technické parametry produktů nemůžeme zaručit, že uváděná data odpovídají skutečnosti. Řada výrobců si vyhrazuje právo změny některých parametrů či vlastností bez předchozího upozornění. Potřebujete-li ujištění o určitých parametrech produktu nebo v případě pochybností, kontaktujte prosím svého obchodníka. Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany.
