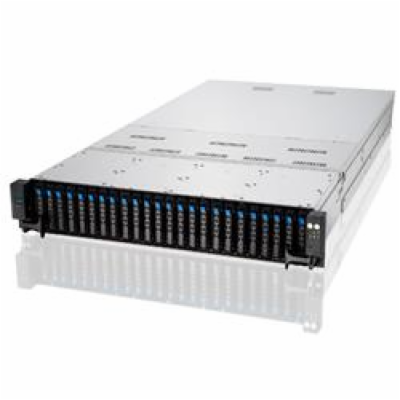

Asus RS720A-E12-RS12/1G/2.6KW/8NVMe 90SF02E1-M002Z0 ASUS 2U server 2x SP5, 24x DDR5 ECC R, 12x 3,5/8xNVMe, 4x 1Gb LAN, 2x 2600Wt, IPMI
Asus RS720A-E12-RS12/1G/2.6KW/8NVMe 90SF02E1-M002Z0 ASUS 2U server 2x SP5, 24x DDR5 ECC R, 12x 3,5/8xNVMe, 4x 1Gb LAN, 2x 2600Wt, IPMI
136510 Kč
112818 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: 90SF02E1-M002Z0
Kód produktu: 23897107
Výrobce: Asus Czech Service s.r.o.
Záruka: 36 měsíců
Popis produktu
Processor / System Bus
2 x Socket SP5 (LGA 6096)
AMD EPYC™ 9004 Series
Max TDP : 400W
Generation
E12
Memory
Total Slots :
24 (12-channel per CPU, 1 DIMM per CPU)
Capacity :
Maximum up to 3072GB per socket
Memory Type :
DDR5 4800/4400 RDIMM/ 3DS RDIMM
Memory Size :
128GB, 64GB, 32GB RDIMM
128GB, 64GB, 32GB 3DS RDIMM
* Refer to www.asus.com/support for more information
Expansion Slots
Up to 9 x Expansion slots
6 x PCIe Gen5 x8 or 3 x PCIe Gen5 x16 (FHFL)
2 x PCIe Gen5 x8 or 1 x PCIe Gen5 x16 or 1 x OCP3.0 (FHFL)
1 x PCIe Gen5 x16 (LPHL)
*Installing GPU cards will occupied expansion slots.
*GPU SKU do not support OCP3.0.
Storage
SATA Controller :
8 x SATA 6Gb/s ports
2 x M.2 connectors (SATA 6Gb/s & PCI-E Gen4 x4 link)
SAS Controller :
Braodcom HBA CARD 9500-16i (Optional)
Broadcom MegaRAID 9540-8i (Optional)
Broadcom MegaRAID 9560-16i (Optional)
Drive Bays
Front Bays:
12 x 3.5" Hot-Swap drive bays
Support up to 4NVMe/SAS* + 4NVMe/SATA/SAS* + 4SATA/SAS*
Rear Bays:
2 x 2.5" Hot-Swap drive bays (Optional)
Support 2NVMe**
*RAID card is required to support SAS hard drives.
**Will occupied 2 PCIe slots
Front Bays:
12 x 3.5" Hot-Swap drive bays
Support up to 4NVMe/SAS* + 4NVMe/SATA/SAS* + 4SATA/SAS*
Rear Bays:
2 x 2.5" Hot-Swap drive bays (Optional)
Support 2NVMe**
*RAID card is required to support SAS hard drives.
**Will occupied 2 PCIe slots
System Fan
4
Networking
Option 1: 1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN
Option 2: 1 x Dual Port Intel X710-AT2 10G LAN Controller + 1 x Mgmt LAN
Option 3: None x + 1 x Mgmt LAN
Graphic
Aspeed AST2600 64MB
Multi-GPU Support
Please find the latest GPU support from https://servers.asus.com/support/gpu
Front I/O Ports
2 x USB 3.2 Gen1 ports
Rear I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
1 x RJ-45 Mgmt LAN port
2 x 10G or 4 x 1G RJ-45 GbE LAN port (Optional)
1 x OCP3.0 port (Optional)
*GPU SKU do not support OCP3.0.
Switch/LED
Front Switch/LED:
1 x Power Switch (w/ LED)
1 x Reset Switch
1 x Location Switch (w/ LED)
1 x HDD Access LED
1 x Message LED LAN 1-4 LED (on NIC module)
Rear Switch/LED:
1 x Port 80 LED (Q-Code)
1 x Power Switch w/ LED
1 x Location Switch w/LED
1 x Message LED
OS Support
Please find the latest OS support from https://servers.asus.com/support/os
Management Solution
On-Board ASMB11-iKVM for KVM-over-IP
ASUS Control Center Enterprise (Optional)
Regulatory Compliance
BSMI, CE, CB, C-Tick, FCC(Class A)
Dimensions
840mm x 449mm x 88.1mm (33.07" x 17.68" x 3.47")
Form Factor
2U
Weight
Net Weight : 19.3KG
Gross Weight : 25.77KG
Power Supply
1+1 Redundant 2000W/1600W 80 PLUS Platinum Power Supply
1+1 Redundant 2600W/1600W 80 PLUS Titanium Power Supply
Rating:
100-127/220-240Vac,12A/9.5A(x2),50/60Hz
100-127/240Vac,13.8A/16A(x2), 50/60Hz
220-240Vac, 10A(x2), 50/60Hz
Environment
Operation temperature: 10? ~ 35?
Non operation temperature: -40? ~ 60?
Non operation humidity: 20% ~ 90% (Non condensing)
Optional Items
Standard Cooling Solution or Enhanced Volume Air Cooling Solution
Note
*SAS support only from SAS HBA/RAID Card
CPU Heatsink/ Cooler
2
Fan
1 (For supporting GPU SKU, it will have external fan)
Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
The information contained is general testing result for reference. Please consult local sales representative for more information on specific supported CPU list on each system.
* Optional means “built for order”.
