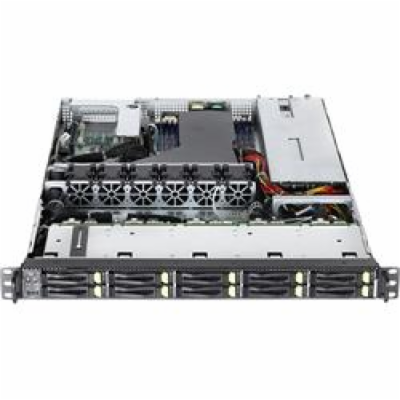

ASRock Rack 1U server 1x SP3 7002, 8x DDR4 ECC R, 10x SATA/NVMe 2,5HS, PCIe4 x16, OCP2, 2x 10Gb LAN, 2x750W, IPMI
ASRock Rack 1U server 1x SP3 7002, 8x DDR4 ECC R, 10x SATA/NVMe 2,5HS, PCIe4 x16, OCP2, 2x 10Gb LAN, 2x750W, IPMI
57643 Kč
47639 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: 1U10E-ROME/2T
Kód produktu: 20671335
Výrobce: ASRock
Záruka: 24 měsíců
Popis produktu
System
Form Factor
- 1U Rackmount
Chassis Model
- 1U10E-ROME/2T
Dimensions
- 625 mm X 430 mm X 43.5 mm
Support MB
- ATX, 12''x9.6'' (ROMED8QM-2T)
Front Panel
Buttons
- Power Button
- Reset Button
- NMI Button
LEDs
- POWER LED
- LAN1 LED
- LAN2 LED
I/O Ports
- 1 x USB 3.0 port
External Drive Bay / Storage
Front Side Drive Bay
- 10 Bay 2.5'' SATA (6Gb/s) or NVMe (8Gb/s) Drives
Front Side Backplane
- backplane with 10 SATA or NVMe ports
Power Supply
Type
- 1U
Output Watts
- 2(1+1) 750W Redundant
System Fan
Fan
- 4056 mm Fan x 6
Riser card Support
Riser card Type
- 1 x Symmetry Riser card(X16/x16) support 1 x PCIE card
Physical Status
Form Factor
- ATX
Dimensions
- 12''x9.6''
Processor System
CPU
- Supports AMD EPYC™ 7003 * and 7002 Series Processors
* A BIOS update is required to support AMD EPYC™ 7003 Series Processors. Please contact ASRock Rack Technical Support for the necessary firmwares.
Socket
- Single Socket SP3 (LGA4094)
Chipset
- N/A
System Memory
Capacity
- 8 DIMM slots; 8 Channels DDR4 memory technology
- RDIMM : 32GB, 16GB, 8GB
- LRDIMM : 128GB, 64GB
Type
- 8 Channels DDR4 memory technology
- Support DDR4 3200/2933/2666/2400 RDIMM, and LRDIMM
Voltage
- 1.2V
Expansion Slot
PCIe x 16
- SLOT6: PCIe4.0 x16
Mezzanine slot
-1 x OCP mezzanine A/B
Storage
SATA Controller
- 4x SATA3 6.0 Gb/s (from1 x mini SAS HD)
Slimline for U.2
- CPU1 X8(SATA Gen3 x 8 or PCIe Gen3 x4 * 2)
- CPU1 X8(SATA Gen3 x 8 or PCIe Gen3 x4 * 2)
- CPU1 X8 (NVME only)
- CPU1 X8 (NVME only)
- CPU1 X8 (NVME only)
- CPU1 X8(SATA Gen3 x 8 or PCIe Gen3 x4 * 2)
- CPU1 X8 (NVME only)
M.2 slot
- 1 (M.2_2: 22110, SATA and PCIe colay(SATA/PCIe x4))
Ethernet
Interface
- 10G by Intel ® X550
LAN Controller
- 2 x 10G base-T by Intel ® x550
- 1 x RJ45 Dedicated IPMI LAN port by RTL8211E
Management
BMC Controller
- ASPEED AST2500
IPMI Dedicated GLAN
- 1 x Realtek RTL8211E for dedicated management GLAN
Features
- Watch Dog
- NMI
Graphics
Controller
- ASPEED AST2500
VRAM
- DDR4 256Mb
Rear Panel I/O
VGA Port
- 1 x D-Sub
USB 3.2 Gen1 Port
- 2
Lan Port
- 2 x 10G Base-T
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port
- 1 x COM port
UID Button/UID LED
- 1
Internal Connector
SATA DOM
- 1
M.2
- 1 (M.2:22110 ; SATA and PCIe colay(SATA/PCIe x4))
OCuLink
- 0
TR1 Header
- 1
TPM Header
- 1
IPMB Header
- 1
Buzzer
- 1
Fan Header
- 6x system Fan (4 front, 2 rear)
ATX Power
- 1x (24-pin) + 1x (8-pin)
USB 3.2 (Gen1) Header
- 1 ( support 2 ports USB 3.0)
Front Panel
- 1
System BIOS
BIOS Type
- 32MB AMI UEFI Legal BIOS
BIOS Features
- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8 Support
- ASRock Rack Instant Flash
Hardware Monitor
Temperature
- CPU Temperature Sensing
- MB_A/MB_B/X550/Card side Temperature Sensing
Fan
- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
Voltage
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB
Environment
Temperature
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Popis produktu
SpecificationsSystem
Form Factor
- 1U Rackmount
Chassis Model
- 1U10E-ROME/2T
Dimensions
- 625 mm X 430 mm X 43.5 mm
Support MB
- ATX, 12''x9.6'' (ROMED8QM-2T)
Front Panel
Buttons
- Power Button
- Reset Button
- NMI Button
LEDs
- POWER LED
- LAN1 LED
- LAN2 LED
I/O Ports
- 1 x USB 3.0 port
External Drive Bay / Storage
Front Side Drive Bay
- 10 Bay 2.5'' SATA (6Gb/s) or NVMe (8Gb/s) Drives
Front Side Backplane
- backplane with 10 SATA or NVMe ports
Power Supply
Type
- 1U
Output Watts
- 2(1+1) 750W Redundant
System Fan
Fan
- 4056 mm Fan x 6
Riser card Support
Riser card Type
- 1 x Symmetry Riser card(X16/x16) support 1 x PCIE card
Physical Status
Form Factor
- ATX
Dimensions
- 12''x9.6''
Processor System
CPU
- Supports AMD EPYC™ 7003 * and 7002 Series Processors
* A BIOS update is required to support AMD EPYC™ 7003 Series Processors. Please contact ASRock Rack Technical Support for the necessary firmwares.
Socket
- Single Socket SP3 (LGA4094)
Chipset
- N/A
System Memory
Capacity
- 8 DIMM slots; 8 Channels DDR4 memory technology
- RDIMM : 32GB, 16GB, 8GB
- LRDIMM : 128GB, 64GB
Type
- 8 Channels DDR4 memory technology
- Support DDR4 3200/2933/2666/2400 RDIMM, and LRDIMM
Voltage
- 1.2V
Expansion Slot
PCIe x 16
- SLOT6: PCIe4.0 x16
Mezzanine slot
-1 x OCP mezzanine A/B
Storage
SATA Controller
- 4x SATA3 6.0 Gb/s (from1 x mini SAS HD)
Slimline for U.2
- CPU1 X8(SATA Gen3 x 8 or PCIe Gen3 x4 * 2)
- CPU1 X8(SATA Gen3 x 8 or PCIe Gen3 x4 * 2)
- CPU1 X8 (NVME only)
- CPU1 X8 (NVME only)
- CPU1 X8 (NVME only)
- CPU1 X8(SATA Gen3 x 8 or PCIe Gen3 x4 * 2)
- CPU1 X8 (NVME only)
M.2 slot
- 1 (M.2_2: 22110, SATA and PCIe colay(SATA/PCIe x4))
Ethernet
Interface
- 10G by Intel ® X550
LAN Controller
- 2 x 10G base-T by Intel ® x550
- 1 x RJ45 Dedicated IPMI LAN port by RTL8211E
Management
BMC Controller
- ASPEED AST2500
IPMI Dedicated GLAN
- 1 x Realtek RTL8211E for dedicated management GLAN
Features
- Watch Dog
- NMI
Graphics
Controller
- ASPEED AST2500
VRAM
- DDR4 256Mb
Rear Panel I/O
VGA Port
- 1 x D-Sub
USB 3.2 Gen1 Port
- 2
Lan Port
- 2 x 10G Base-T
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port
- 1 x COM port
UID Button/UID LED
- 1
Internal Connector
SATA DOM
- 1
M.2
- 1 (M.2:22110 ; SATA and PCIe colay(SATA/PCIe x4))
OCuLink
- 0
TR1 Header
- 1
TPM Header
- 1
IPMB Header
- 1
Buzzer
- 1
Fan Header
- 6x system Fan (4 front, 2 rear)
ATX Power
- 1x (24-pin) + 1x (8-pin)
USB 3.2 (Gen1) Header
- 1 ( support 2 ports USB 3.0)
Front Panel
- 1
System BIOS
BIOS Type
- 32MB AMI UEFI Legal BIOS
BIOS Features
- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8 Support
- ASRock Rack Instant Flash
Hardware Monitor
Temperature
- CPU Temperature Sensing
- MB_A/MB_B/X550/Card side Temperature Sensing
Fan
- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
Voltage
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB
Environment
Temperature
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
