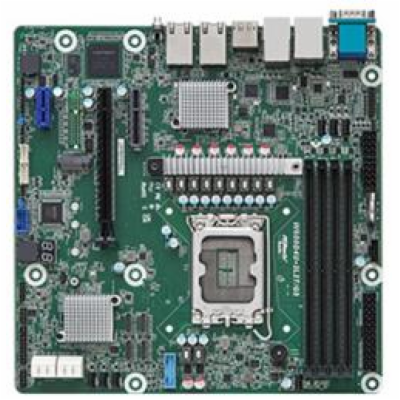

ASRock Rack W680D4U-2L2T/G5 LGA1700, 4x DDR5, 8x SATA, M.2(2280), 3x PCIe, 2x 1Gb +2x 10Gb LAN, IPMI
ASRock Rack W680D4U-2L2T/G5 LGA1700, 4x DDR5, 8x SATA, M.2(2280), 3x PCIe, 2x 1Gb +2x 10Gb LAN, IPMI
19550 Kč
16157 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: W680D4U-2L2T/G5
Kód produktu: 23979873
Výrobce: ASRock
Záruka: 24 měsíců
Popis produktu
Micro-ATX (9.6" x 9.6")
Supports 12th & 13th Gen Intel ® Core™ series processors
4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
1 PCIe5.0 x16, 1 PCIe4.0 x4, 1 PCIe3.0 x1
3 OCuLink (PCIe4.0 x4), 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s)
Supports 1 M.2 (PCIe3.0 x4)
2 RJ45 (10GbE) by Intel ® X710
2 RJ45 (1GbE) by Intel ® i210
Up to 8 SATA 6Gb/s
1 VGA, 1 HDMI, 1 DisplayPort
Remote Management (IPMI)
Specifications
Physical Status
Form Factor
Micro-ATX
Dimensions
9.6'' x 9.6'' (244 mm x 244 mm)
Processor System
CPU
Supports 12th & 13th Gen Intel ® Core™ series processors
Socket
Single Socket LGA 1700
Thermal Design Power
125W
Chipset
Intel ® W680
System Memory
Supported DIMM Quantity
4 DIMM slots (2DPC)
Supported Type
DDR5 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM
32GB
Max. DIMM Frequency
4400MT/s (2DPC-1DIMM) / 4000MT/s (2DPC-2DIMM 1R) / 3600MT/s (2DPC-2DIMM 2R)
Voltage
1.1V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT6: PCIe5.0 x16 [CPU]
PCIe x 4
SLOT7: PCIe4.0 x4 [CPU]
PCIe x 1
SLOT4: PCIe3.0 x1 [PCH]
Other PCIe Expansion Connectors
M.2 slot
1 M-key (PCIe3.0 x4) [PCH]; support 2280/2260/2242/2230 form factor
OCuLink
1 OCuLink (PCIe4.0 x4) * [CPU]
1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [PCH]
2 OCuLink (PCIe4.0 x4) [PCH]
* OCulink4 shares lanes with SLOT7 and will be disabled when SLOT7 is populated.
SATA/SAS Storage
PCH Built-in Storage
Intel W680 (up to 8 SATA 6Gb/s; RAID 0/1/5/10):
4 SATA 7-pin, 1 OCuLink
Ethernet
Additional GbE Controller
2 RJ45 (10GbE) by Intel ® X710
2 RJ45 (1GbE) by Intel ® i210
Server Management
BMC Controller
ASPEED AST2600: iKVM, vMedia support
IPMI Dedicated GLAN
1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F
Graphics
Controller
ASPEED AST2600:
1 DB15 (VGA)
Intel ® Integrated Processor Graphics:
1 HDMI, 1 DisplayPort
Rear I/O
UID Button/LED
1 button w/ LED
VGA Port
1 DB15 (VGA), 1 HDMI, 1 DisplayPort
Serial Port
1 DB9 (COM)
USB 3.2 Gen1 Port
2 Type A (USB3.2 Gen1)
RJ45
2 RJ45(10GbE), 2 RJ45(1GbE), 1 dedicated IPMI
Internal Connector/Headers
Power Connector
1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
VGA header
1
Speaker Header
1 (4-pin)
Buzzer
1
Fan Header
7 (4-pin)
Thermal Sensor Header
1
TPM Header
1 (13-pin, SPI)
SGPIO Header
1
SMBus header
1
PMBus header
1
IPMB Header
1
Clear CMOS
1 (contact pads)
Others
1 (4-pin, LAN3/LAN4 LED)
ME/SPS Recovery
1
USB 3.2 (Gen1) Header
1 (19-pin, 2 USB3.2 Gen1)
USB 2.0 Header
1 (9-pin, 2 USB2.0)
NMI Header
1
LED Indicators
Standby PWR LED 5vsb
1
80 Debug Port LED
1
Fan Fail LED
7
BMC heartbeat LED
1
System BIOS
BIOS Type
AMI 256 Mb SPI Flash ROM
BIOS Features
Plug and Play (PnP), ACPI 6.4 and above compliance wake up events, SMBIOS 2.8 and above, ASRock Rack Instant Flash
Hardware Monitor
Temperature
CPU, MB, Card side, VR, M.2, X710, TR Temperature sensing
Fan
Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage
3VSB, 5VSB, CPU_VCORE, VCCIN_AUX, VDD2, 1.05V_PCH, 0V82SB_PCH, VCCGT, 1V8SB, VCCSA, BAT, 3V, 5V, 12V
Supported OS
OS
Windows ® 10 (64bit)
Windows ® 11 (64 bit)
Environment
Temperature
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity
Non operation humidity: 20% ~ 90% ( Non condensing)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
