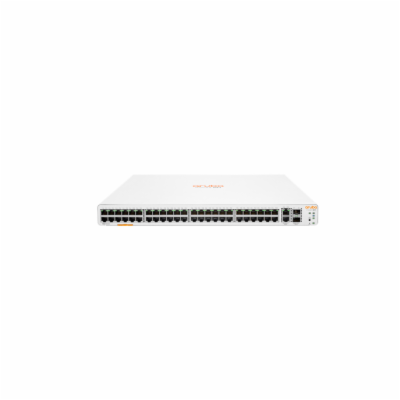

Aruba Instant On 1960 48G 2XGT 2SFP+ Switch
Aruba Instant On 1960 48G 2XGT 2SFP+ Switch
21699 Kč
17933 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: JL808A#ABB
Kód produktu: 23672343
Výrobce: Hewlett Packard Enterprise
Záruka: 99 měsíců
Popis produktu
I/O ports and slots
48 RJ-45 autosensing 10/100/1000 Mbps ports
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
2 SFP+ 10GbE ports 2 10GBASE-T ports
Dimensions
350.5(d) x 442.5(w) x 43.95(h) mm
Weight
9.8 lb (4.4 kg)
CPU
Single-Core ARM v7 Cortex-A9 @800MHz
100 Mb Latency
< 4.4 uSec
1000 Mb Latency
< 2.2 uSec
10000 Mb Latency
< 1.1 uSec
Throughput (Mpps)
131 Mpps
Capacity
176 Gbps
Routing Table size (# of static entries)
32 IPv4/IPv6
MAC Address table size (# of entries)
16,000 entries
Reliability MTBF (years)
109.4
Operating temperature
0-40°C, 0-10,000 ft
Operating relative humidity
15% to 95% @ 104°F (40°C) non-condensing
Nonoperating/Storage temperature
-40°F to 158°F (-40°C to 70°C) up to 15000 ft
Nonoperating/Storage relative humidity
15% to 90% @ 149°F (65°C) non-condensing
Altitude
up to 10,000 ft (3 km)
Acoustics 1
LWAd = 2.9 Bel Notes 1 : 1 Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL807A and JL809A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm)
Electrical Characteristics
Frequency
50Hz/60Hz
AC voltage
100-127VAC / 200-240VAC
Current
1.1A/0.4A
Maximum power rating
100-127V: 110W 200-220V: 120W
Idle power
100-127V: 60W 200-220V: 80W
PoE power
-
Power Supply
Internal power supply
Safety
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
EN/IEC 62368-1, 2nd. & 3rd. Ed.
UL 62368-1, 2nd. & 3rd. Ed.
CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.
EN/IEC 60825-1:2014 Class 4
Emissions
EN 55032:2015/CISPR 32, Class A
FCC CFR 47 Part 15: 2018 Class A
ICES-003 Class A
VCCI Class A
CNS 13438 Class A
KN 32 Class A
AS/NZS CISPR 32 Class A
Generic
EN 55035, CISPR 35, KN35
EN
EN 55035, CISPR 35
ESD
EN/IEC 61000-4-2
Radiated
EN/IEC 61000-4-3
EFT/Burst
EN/IEC 61000-4-4
Surge
EN/IEC 61000-4-5
Conducted
EN/IEC 61000-4-6
Power frequency magnetic field
EN/IEC 61000-4-8
Voltage dips and interruptions
EN/IEC 61000-4-11
Harmonics
EN/IEC 61000-3-2
Flicker
EN /IEC 61000-3-3
Device Management
Aruba Instant On Cloud; Web browser; SNMP Manager
Mounting Positions and Supported Racking
Mounts in an EIA-standard 19 in. telco rack or equipment cabinet. 2-post rack kit included
Supports table-top mounting
Supports rack-mounting
Supports wall-mounting with ports facing either up or down
Supports under-table mounting using the brackets provided
Transceivers
Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)
Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)
Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D)
Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A)
Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E)
Aruba 10G SFP+ to SFP+ 1m DAC (J9281D)
Aruba 10G SFP+ to SFP+ 3m DAC (J9283D)
