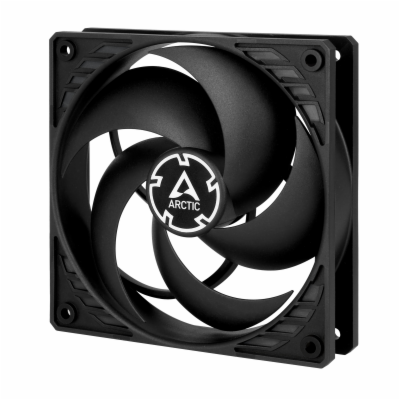

ARCTIC P12 TC ACFAN00176A ARCTIC P12 TC (black/black) - 120mm case fan with temperature control
ARCTIC P12 TC ACFAN00176A ARCTIC P12 TC (black/black) - 120mm case fan with temperature control
171 Kč
141 Kč bez DPH
Dostupnost: Skladem v eshopu 🛈
Part no.: ACFAN00176A
Kód produktu: 23742937
Výrobce: Arctic
Záruka: 24 měsíců
Popis produktu
P12 TC - Pressure-optimised 120 mm Fan with Temperature Control
OPTIMISED FOR STATIC PRESSURE
During the development of the new P12 TC, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 TC is particularly suitable for use on heatsinks and radiators.
MAXIMUM QUIETNESS, MINIMUM VIBRATION
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
HIGH QUALITY BEARING
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
IDEAL TEMPERATURE CONTROL
The temperature sensor is on a 40 cm cable and can be placed in the warm areas of your computer. This assures temperatures no higher than 38 °C anywhere in the case and supports the cooling of your CPU or graphics card. On the other side this fan keeps the noise level absolutely minimal and only increases the speed if necessary.
TECHNICAL SPECIFICATIONS:
General data
Performance
Fan Speed: 350 - 1800 rpm
Airflow: 56.3 CFM/ 95.7 m3/h
Static Pressure: 2,20 (mm/H2O)
Noise Level: 0.3 Sone
Fan
Fan Frame: Standard
Controll Type: Temperature Control
Connector: 3-Pin-Connector
Fan Bearing: Fluid Dynamic Bearing
Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 2.4 V
Current: 0.08 A
Cable Lenght: 400 mm
Size & Weight
Lenght: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 139 g
Popis produktu
P12 TC - 120mm větráček s teplotní kontrolou a optimalizací na tlak, rozměr 120x120x25mm, otáčky 350 - 1800 rpm, průtok vzduchu 56.3 CFM/ 95.7 m3/h, statický tlak 2,20 (mm/H2O), hlučnost 0.3 Sone, 3pin konektorP12 TC - Pressure-optimised 120 mm Fan with Temperature Control
OPTIMISED FOR STATIC PRESSURE
During the development of the new P12 TC, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 TC is particularly suitable for use on heatsinks and radiators.
MAXIMUM QUIETNESS, MINIMUM VIBRATION
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
HIGH QUALITY BEARING
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
IDEAL TEMPERATURE CONTROL
The temperature sensor is on a 40 cm cable and can be placed in the warm areas of your computer. This assures temperatures no higher than 38 °C anywhere in the case and supports the cooling of your CPU or graphics card. On the other side this fan keeps the noise level absolutely minimal and only increases the speed if necessary.
TECHNICAL SPECIFICATIONS:
General data
Performance
Fan Speed: 350 - 1800 rpm
Airflow: 56.3 CFM/ 95.7 m3/h
Static Pressure: 2,20 (mm/H2O)
Noise Level: 0.3 Sone
Fan
Fan Frame: Standard
Controll Type: Temperature Control
Connector: 3-Pin-Connector
Fan Bearing: Fluid Dynamic Bearing
Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 2.4 V
Current: 0.08 A
Cable Lenght: 400 mm
Size & Weight
Lenght: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 139 g
